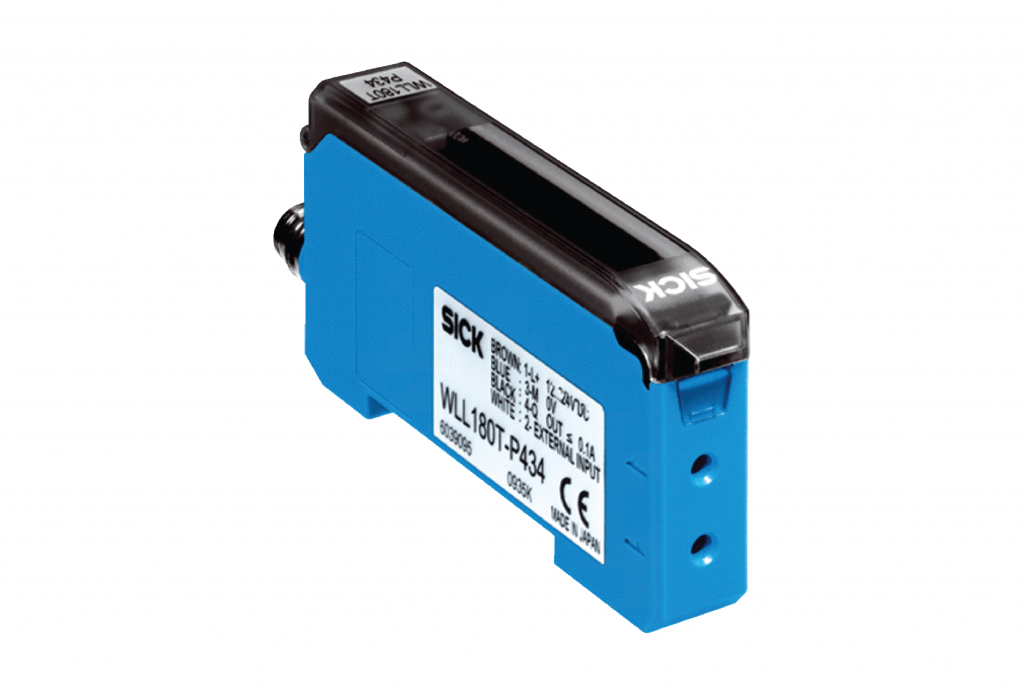

Photoelectric sensors WLL180T

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm
  • Sensing range max: 0 m ... 20 m, Through-beam system
  • Light source: LED
  • Reliable, rapid process detection, even under the most difficult ambient conditions, such as dust, spray or mist
  • Flexible parameter adjustment due to high-resolution signal processing. Hysteresis and time delays can be adapted to suit the application, e.g., when detecting tiny or transparent objects
  • Selectable response time up to 16 µs
Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Part number:

Product Part no.: Device type detail Type of light Switching output Connection type Detail Input Sensing range max.
WLL180T-M634 6050760 Base unit visible red light PNP male connector M8, 4-pin – 12 … 20 m
WLL180T-M674 6064432 Base unit Infrared light PNP male connector M8, 4-pin – 500 … 1000 mm
WLL180T-M634S11 6050776 Base unit visible red light PNP male connector M8, 4-pin – 12 … 20 m
WLL180T-P474S14 6052848 Stand-alone Infrared light PNP male connector M8, 4-pin – 500 … 1000 mm
WLL180T-P474S01 6039620 Stand-alone Infrared light PNP male connector M8, 4-pin Multifunctional input MF 500 … 1000 mm
WLL180T-M434S21 6068520 Base unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-F434S20 6066072 expansion unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-F333 6042429 expansion unit visible red light PNP Connector M8, 3-pin – 12 … 20 m
WLL180T-F434S08 6049026 expansion unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-N474 6039619 Stand-alone Infrared light NPN male connector M8, 4-pin Multifunctional input MF 500 … 1000 mm
WLL180T-M434S04 6045339 Base unit visible red light PNP male connector M8, 4-pin – 12 … 20 m
WLL180T-N434 6039096 Stand-alone visible red light NPN male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-M333 6042428 Base unit visible red light PNP Connector M8, 3-pin 12 … 20 m
WLL180T-F634 6050761 expansion unit visible red light PNP male connector M8, 4-pin – 12 … 20 m
WLL180T-M434 6039101 Base unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-M434S07 6049025 Base unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-P474 6039618 Stand-alone Infrared light PNP male connector M8, 4-pin Multifunctional input MF 500 … 1000 mm
WLL180T-F434 6039102 expansion unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-P434 6039095 Stand-alone visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-F434S17 6062150 expansion unit visible red light PNP male connector M8, 4-pin – 12 … 20 m
WLL180T-E434 6039104 expansion unit visible red light NPN male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-F474 6065732 expansion unit Infrared light PNP male connector M8, 4-pin Multifunctional input MF 500 … 1000 mm
WLL180T-L333 6049837 Base unit visible red light NPN Connector M8, 3-pin – 12 … 20 m
WLL180T-L434 6039103 Base unit visible red light NPN male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-M434S16 6062149 Base unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-M434S19 6066071 Base unit visible red light PNP male connector M8, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-F434S05 6045340 expansion unit visible red light PNP Cable with M8 male connector, 4-pin – 12 … 20 m
WLL180T-M333S01 6041000 Base unit visible red light PNP Cable with connector M8, 3-pin – 12 … 20 m
WLL180T-F333S01 6041001 expansion unit visible red light PNP Cable with connector M8, 3-pin – 12 … 20 m
WLL180T-P432S06 6048130 Stand-alone visible red light PNP Cable with M12 male connector, 4-pin Multifunctional input MF 12 … 20 m
WLL180T-N432S01 6041639 Stand-alone visible red light NPN Cable with MOLEX-connector, 3-pin Multifunctional input MF 12 … 20 m
WLL180T-L632 6050762 Base unit visible red light NPN cable, 5-wire Multifunctional input MF 12 … 20 m
WLL180T-P435 6069359 Stand-alone visible red light PNP Cable, 4-wire Multifunctional input MF 12 … 20 m
WLL180T-E232 6039100 expansion unit visible red light NPN Cable, 2-wire Multifunctional input MF 12 … 20 m
WLL180T-M432S01 6041508 Base unit visible red light PNP Cable, 3-wire Multifunctional input MF 12 … 20 m
WLL180T-L432 6039099 Base unit visible red light NPN Cable, 4-wire Multifunctional input MF 12 … 20 m
WLL180T-P432 6039093 Stand-alone visible red light PNP Cable, 4-wire Multifunctional input MF 12 … 20 m
WLL180T-F232 6039098 expansion unit visible red light PNP Cable, 2-wire Multifunctional input MF 12 … 20 m
WLL180T-N432 6039094 Stand-alone visible red light NPN Cable, 4-wire Multifunctional input MF 12 … 20 m
WLL180T-M432 6039097 Base unit visible red light PNP Cable, 4-wire Multifunctional input MF 12 … 20 m
WLL180T-E632 6050763 expansion unit visible red light NPN cable, 5-wire Multifunctional input MF 12 … 20 m
WLL180T-F232S01 6041509 expansion unit visible red light PNP Cable, 2-wire Multifunctional input MF 12 … 20 m
At a glance:

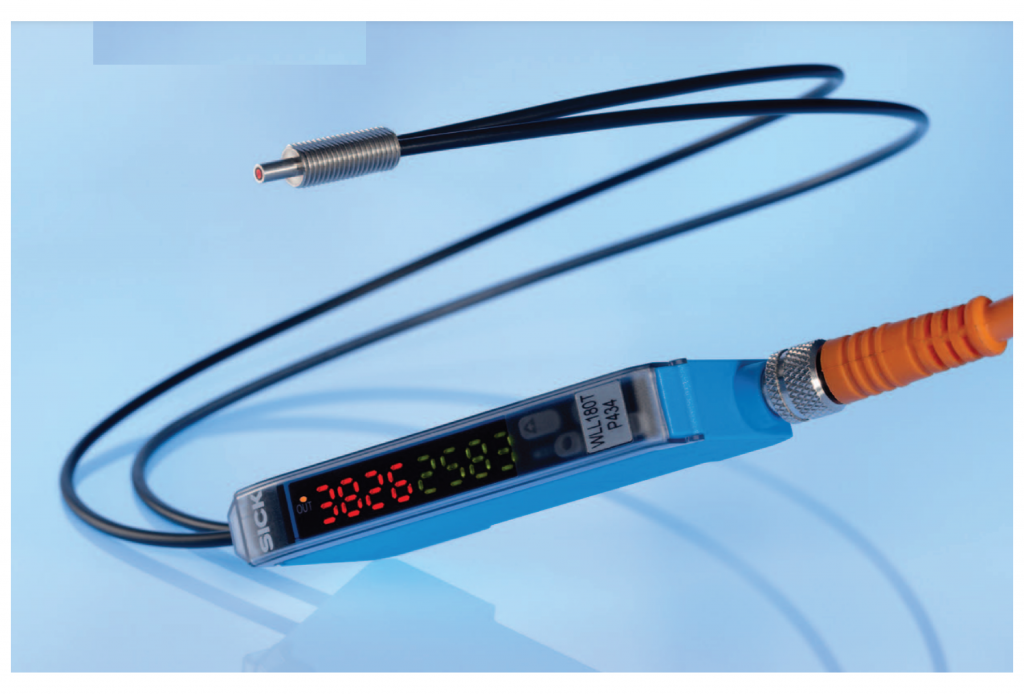

  • High-performance fiber-optic sensor with world’s fastest response time
  • Reliable, rapid process detection, even under the most difficult ambient conditions, such as dust, spray or mist
  • Flexible parameter adjustment due to high-resolution signal processing. Hysteresis and time delays can be adapted to suit the application, e.g., when detecting tiny or transparent objects
  • Selectable response time up to 16 µs
Technical data:
  • Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm
  • Sensing range max: 0 m ... 20 m, Through-beam system
  • Light source: LED
  • Type of light: Visible red light / Infrared light
  • Enclosure rating: IP50
  • Housing material: Plastic ABS/PC
  • Adjustment: Menu-controlled/ Single teach-in button/ Cable
Features:
  • Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm
  • Sensing range max: 0 m ... 20 m, Through-beam system
  • Light source: LED
  • Type of light: Visible red light / Infrared light
  • Response time: 16 µs (High Speed)/ 70 µs (Fast)/ 250 µs (Standard)/ 2 ms (Long)/ 8 ms (Super Long)
  • Enclosure rating: IP50
  • Adjustment: Menu-controlled/ Single teach-in button/ Cable
Mechanics/ Electronics:
  • Power supply: 12 V DC ... 24 V DC
  • Switching output: NPN/PNP - Light/Dark on (depending on type)
  • Connection type: Cable/ Male connector
  • Housing material: Plastic ABS/PC
  • Temperature range: –25 °C ... +55 °C
Dimensions:
Connection diagram:

No documents available
