Automation light grids; Sensing range 70 mm ... 2,150 mm; Detection height 700 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 70 mm ... 2,150 mm; Detection height 200 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 440 mm ... 4,900 mm; Detection height 1,200 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 70 mm ... 2,150 mm; Detection height 500 mm; Beam separation 10 mm; Type of light Infrared light

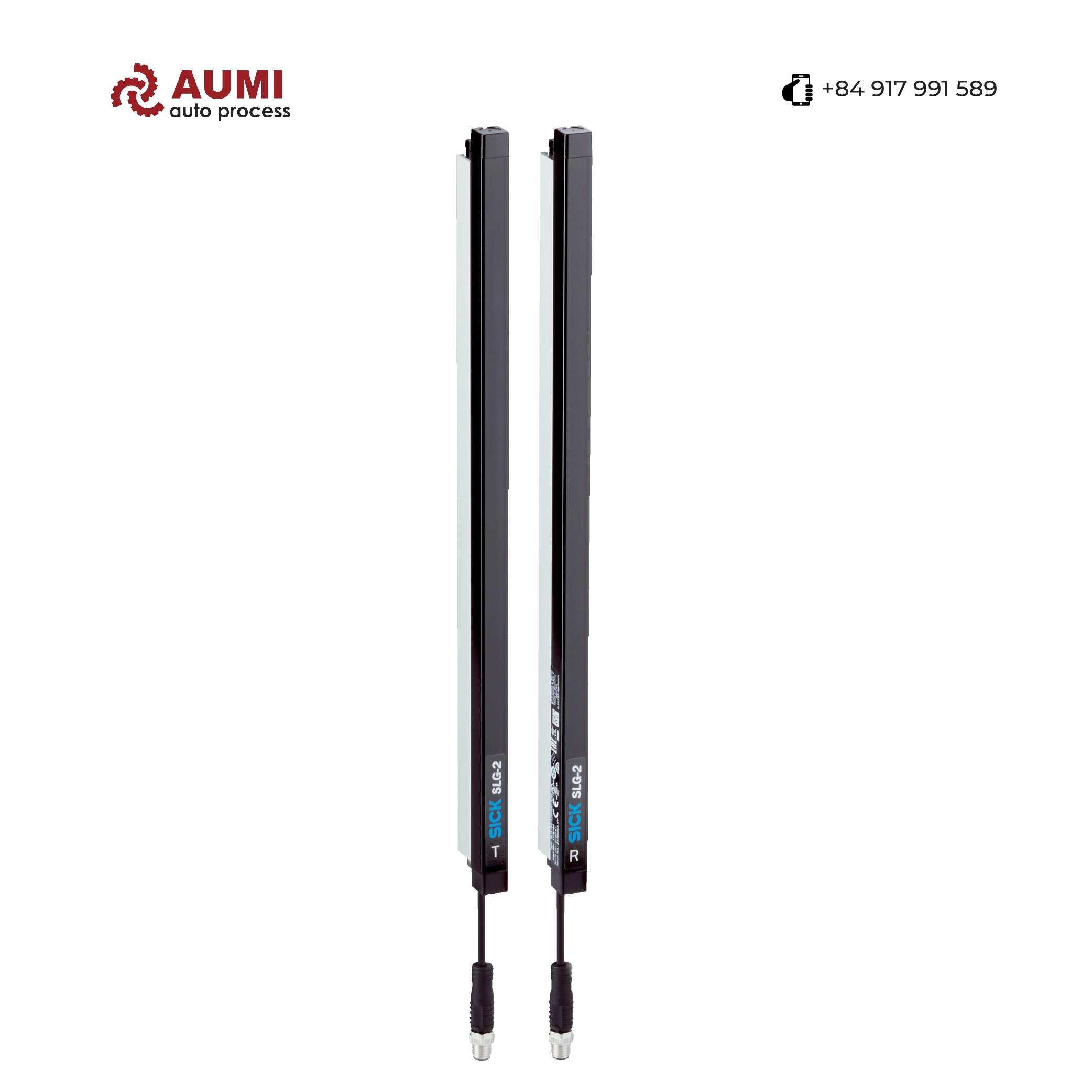

Automation light grids; Sensing range 440 mm ... 4,900 mm; Detection height 300 mm; Beam separation 25 mm; Type of light Infrared light

Automation light grids; Sensing range 440 mm ... 4,900 mm; Detection height 300 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 70 mm ... 2,150 mm; Detection height 100 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 70 mm ... 2,150 mm; Detection height 100 mm; Beam separation 10 mm; Type of light Infrared light

Automation light grids; Sensing range 440 mm ... 4,900 mm; Detection height 1,800 mm; Beam separation 10 mm; Type of light Infrared light

• Detection of the thinnest objects such as envelopes or metal sheets thanks to cross-beam function.
• Precise leading edge detection thanks to short response times and high resolution
• Housing dimensions: 12 mm x 24 mm, detection heights: 100 mm to 2,400 mm
• Slim and flat housing variants
• Cross-beam function: Up to 9 beams

• Flexibly expandable light grid system: Up to 60 sensors can be cascaded and controlled centrally via the FlexChain host.
• Optimum measurement certainty thanks to sequential sensor cycling without mutual interference.
• High flexibility due to logic configuration in the host and the IO-Link, CANopen and RS-485 interface variants.
• Sequential cycling prevents mutual interference.
• Free arrangement of various sensor. technologies.

• The FLG (frame light grid) switching automation light grid is the innovative solution in which the sender and receiver are combined in one housing for the detection of small parts.
• In dynamic operating mode, the FLG performs reject and removal control of workpieces in pressing and punching machines and also supports the packaging process.
• In static operating mode, it can be used for monitoring thread breakage.
• With a monitored area of 200 mm x 250 mm or 200 mm x 120 mm, it allows detection of small parts down to minimum dimensions of 2 mm over a large area.

• Small, slim, and sleek design enables easy integration into applications
• Slim and flat models offer flexible mounting options
• Operating range 7 m
• Response time 18 ms
• Resolution 45 mm to 25 mm
