Automation light grids FLG

Name: Automation light grids FLG
SKU: 8723
Availability: InStock

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

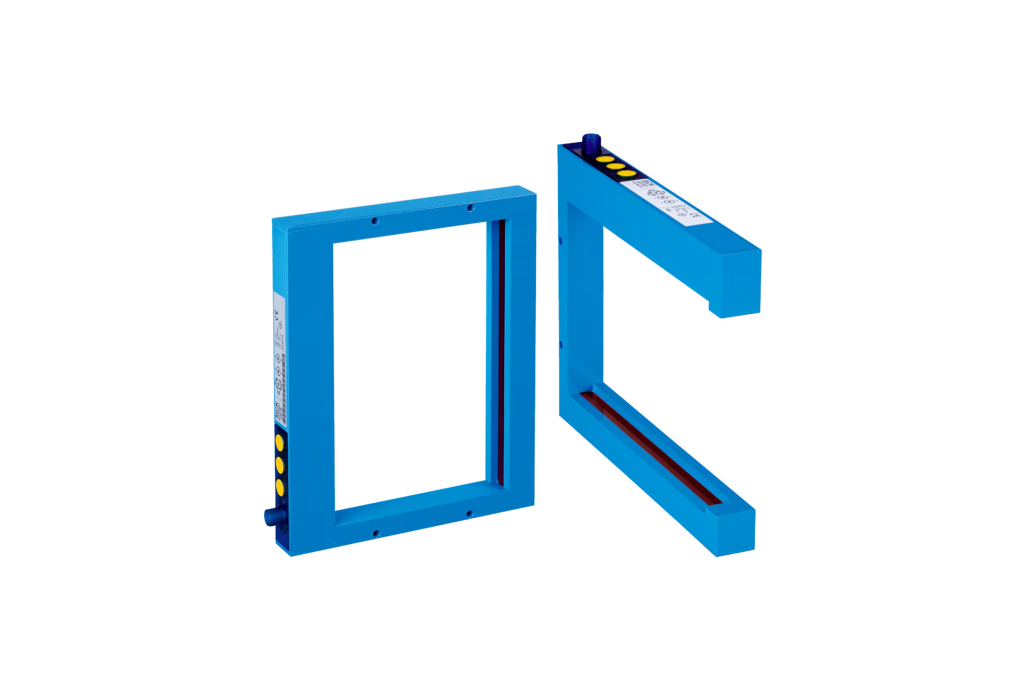

The FLG (frame light grid) switching automation light grid is the innovative solution in which the sender and receiver are combined in one housing for the detection of small parts.
In dynamic operating mode, the FLG performs reject and removal control of workpieces in pressing and punching machines and also supports the packaging process.
In static operating mode, it can be used for monitoring thread breakage.
With a monitored area of 200 mm x 250 mm or 200 mm x 120 mm, it allows detection of small parts down to minimum dimensions of 2 mm over a large area.

Online support

Call

Chat Zalo

Messenger

Part number:

Product	Part no.	Products by tasks	Object properties	Device version	Beam separation	Detection height	Detection area (W x H)	Switching output
FLG2-20012021	6050064	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	2 mm	120 mm	120 mm x 200 mm	PNP, NPN
FLG2-20012011	6049334	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	2 mm	120 mm	120 mm x 200 mm	PNP, NPN
FLG2-20025011	6049138	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	2 mm	250 mm	250 mm x 200 mm	PNP, NPN
FLG4-20018021	6050068	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	4 mm	180 mm	180 mm x 200 mm	PNP, NPN
FLG4-20025021	6050069	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	4 mm	250 mm	250 mm x 200 mm	PNP, NPN
FLG2-20018021	6050065	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	2 mm	180 mm	180 mm x 200 mm	PNP, NPN
FLG4-20012021	6050067	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	4 mm	120 mm	120 mm x 200 mm	PNP, NPN
FLG4-20025011	6049137	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	4 mm	250 mm	250 mm x 200 mm	PNP, NPN
FLG4-20012011	6049135	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	4 mm	120 mm	120 mm x 200 mm	PNP, NPN
FLG2-20025021	6050066	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	open	2 mm	250 mm	250 mm x 200 mm	PNP, NPN
FLG4-20018011	6049136	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	4 mm	180 mm	180 mm x 200 mm	PNP, NPN
FLG2-20018011	6049333	Detecting, Protecting, measuring, Position determination	Detecting small objects, Detection of objects moving at high speeds	close	2 mm	180 mm	180 mm x 200 mm	PNP, NPN

At a glance:

Simple installation and alignment, as sender and receiver in one housing
The adjustable pushbutton lock protects against unwanted changes to parameters and manipulation during operation
Due to pulse stretching, the output signal is available longer on the control system
Also available as an open version for simple integration into your application environment
Large monitored area, therefore only one device required for monitoring small and large parts
Using the sensitivity adjustment, it is possible to hide falling chips and only recognize objects that are relevant to your detection
