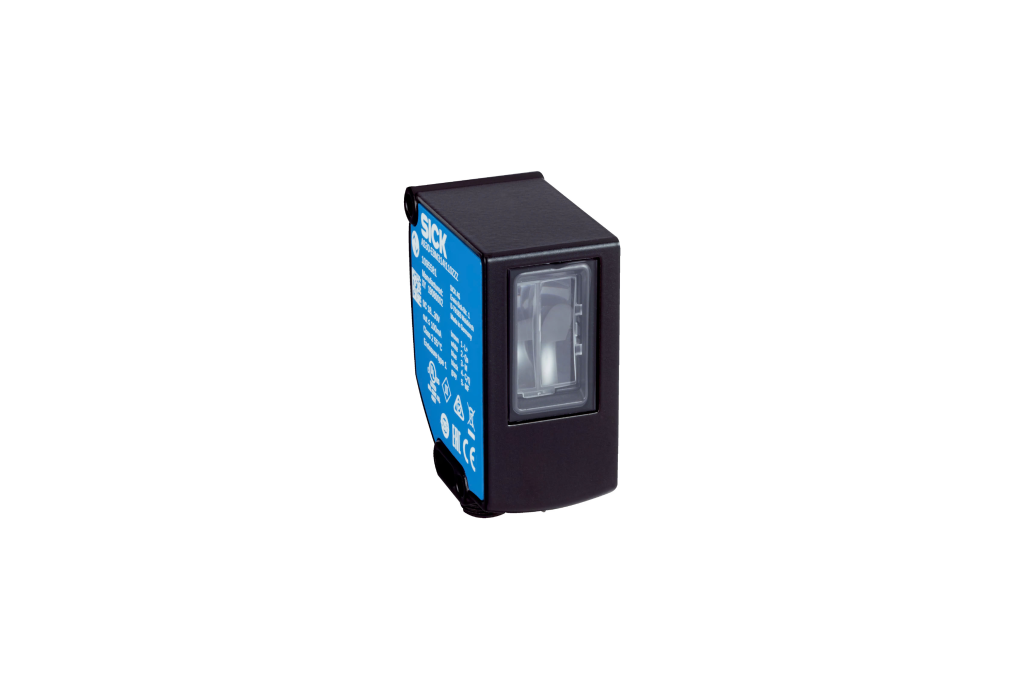

Array sensors AS30

Name: Array sensors AS30
SKU: 9028
Availability: InStock

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

Higher reliability and more stable processes thanks to teach-in of contrast edges.
IO-Link and the SOPAS ET software ensure easy configuration.
Full color TFT display.
Sensing distance of 25 mm or 100 mm.
Repeatability of up to 30 µm.

Online support

Call

Chat Zalo

Messenger

Part number:

Product	Part No.	Sensor principle	Principle of operation (default)	Measuring range / sensing distance	Repeatability	Light spot size	Switching output	Analog output/ Resolution	Ambient operating temperature	Enclosure rating
AS30-WBM534I220A00	1095580	Proximity system, Reflector mode	Width measurement	50 mm / 100 mm	0.05 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-WBM314I220A00	1095579	Proximity system, Reflector mode	Width measurement	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-WBM314I220C00	1095587	Proximity system, Reflector mode	Width measurement	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM314I220C00	1121191	Proximity system, Reflector mode	Web guiding	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM314I110ZZZ	1095581	Proximity system	Web guiding	30 mm / 25 mm	0.2 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM534I220C00	1095586	Proximity system, Reflector mode	Web guiding	50 mm / 100 mm	0.05 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-PBM434I110ZZZ	1095584	Proximity system	positioning	45 mm / 100 mm	0.2 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM314I220C00	1095585	Proximity system, Reflector mode	Web guiding	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-MBM834I320A00	1118222	Proximity system, Reflector mode	Multi-edge: Detection and evaluation of up to 8 edges	165 mm / 100 mm	0.15 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM314I220A00	1095577	Proximity system, Reflector mode	Web guiding	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-WBM314I220C00	1133953	Proximity system, Reflector mode	Width measurement	30 mm / 25 mm	0.03 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-WBM534I220C00	1095588	Proximity system, Reflector mode	Width measurement	50 mm / 100 mm	0.05 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM534I220A00	1095578	Proximity system, Reflector mode	Web guiding	50 mm / 100 mm	0.05 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM434I110ZZZ	1095582	Proximity system	Web guiding	45 mm / 100 mm	0.2 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-EBM534I220C00	1121192	Proximity system, Reflector mode	Web guiding	50 mm / 100 mm	0.05 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67
AS30-PBM314I110ZZZ	1095583	Proximity system	positioning	30 mm / 25 mm	0.2 mm	62.5 mm x 13.2 mm	Push-pull: PNP/NPN	4 mA … 20mA /12 bit	–10 °C … +55 °C	IP67

At a glance:

Higher reliability and more stable processes thanks to teach-in of contrast edges.
TFT display for flexible configuration options and easy commissioning.
Various operating modes provide the right defaults for every application.
High repeatability of up to 30 µm.
No fine positioning of the sensor required thanks to the large field of view of up to 165 mm.
IO-Link and the SOPAS ET software ensure easy configuration.
Efficient communication and predictive maintenance through smart sensor functionality.
