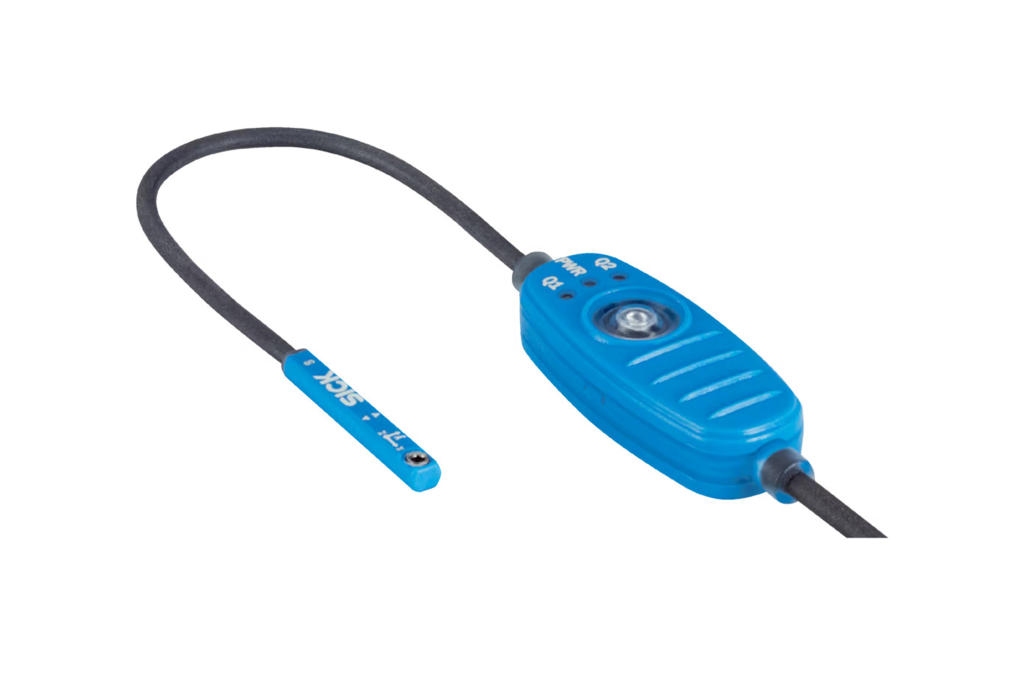

Cylinder sensors MPS-G

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Simple measurement of components with absolute position value
  • Micrometer-accurate detection of very small object tolerances

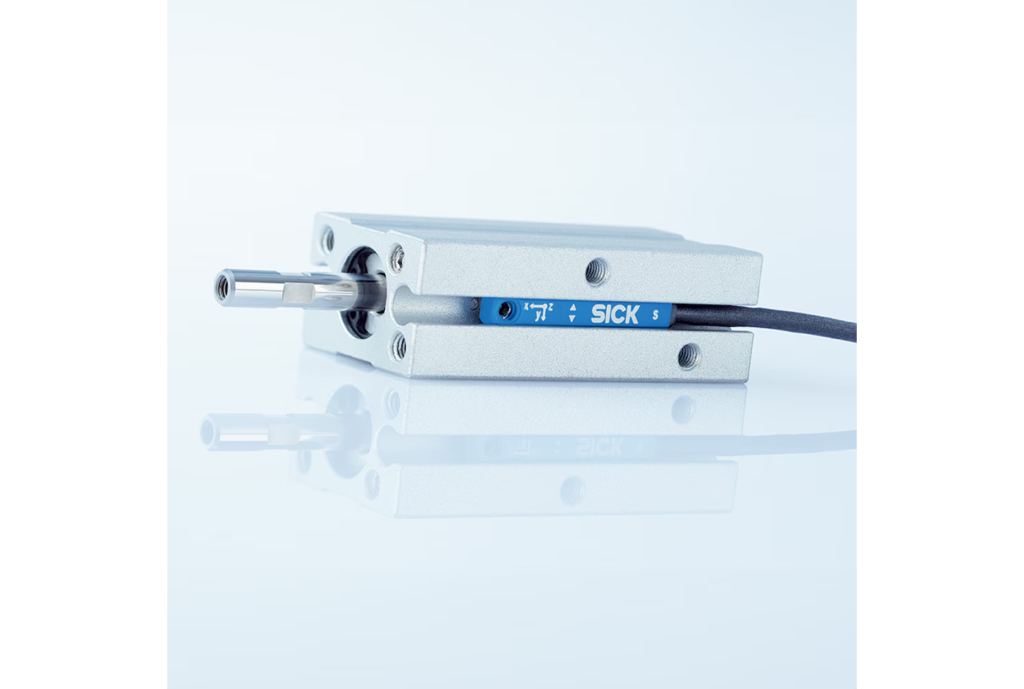

  • Fits in all standard C-slots used around the world or in T-slots in conjunction with an adapter, regardless of the gripper and cylinder profile
  • 8 switching points via IO-Link
  • Dynamic teach-in for up to 3 switching signals

Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Part number:

Product Part no. Output Output function Connection type Length of cable Specialty Control elements connection cable
MPS-G50CSH15D43ZZZ 1108673 Measurement: Exact position Analog Cable with connector M8, with knurled nuts 0.5 m for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CFH15D43ZZZ 1108672 Measurement: Exact position Analog Cable with connector M8, with knurled nuts 0.5 m for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CSH55D31DZZ 1127844 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M8, with knurled nuts 0.5 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.5 m
MPS-G50CSH55D43ZZZ 1108674 Measurement: Exact position Analog Cable with connector M8, with knurled nuts 0.5 m for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.5 m
MPS-G50CSH13E31DZZ 1127846 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M12, with knurled nuts 0.3 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CSH53E31DZZ 1127847 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M12, with knurled nuts 0.3 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.5 m
MPS-G50CFH15D31DZZ 1127848 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M8, with knurled nuts 0.5 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CFH13E31DZZ 1127845 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M12, with knurled nuts 0.3 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CSH15D31DZZ 1127843 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M8, with knurled nuts 0.5 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CFH15D31DZZ 1127842 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M8, with knurled nuts 0.5 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m
MPS-G50CSH15D31DZZ 1127849 Detection: 3 switching points, Measurement: Exact position IO-Link Cable with connector M8, with knurled nuts 0.5 m IO-Link, diagnosis, for pneumatic grippers and miniature cylinders Cable, 4-wire, 0.1 m

At a glance:

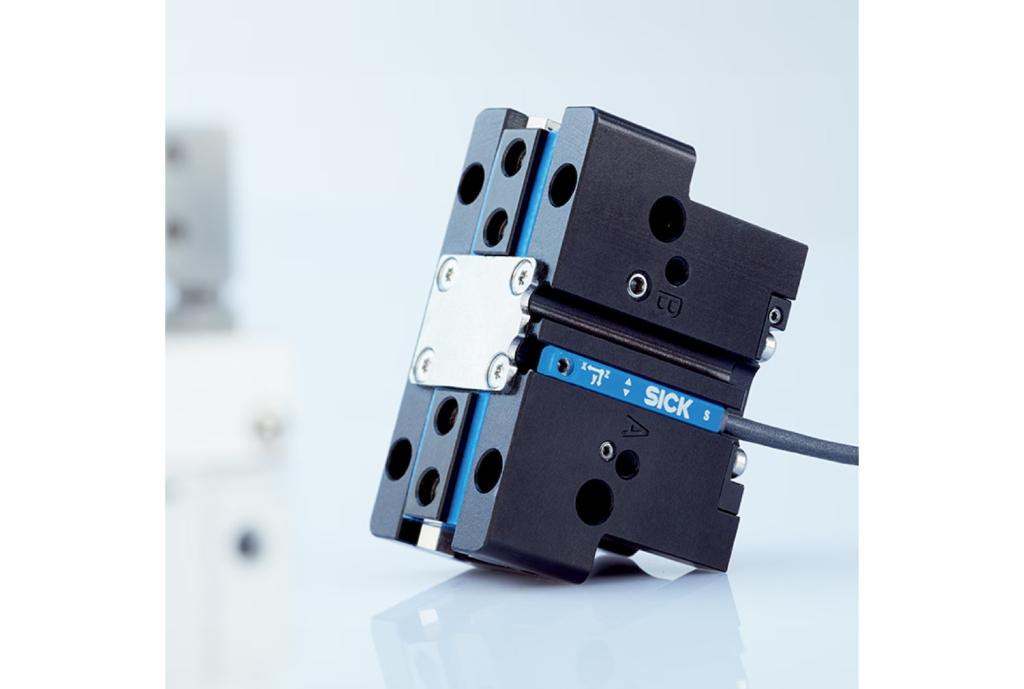

  • Definition of two, three or more switching points to differentiate between gripper positions and several objects
  • Simple measurement of components with absolute position value
  • Micrometer-accurate detection of very small object tolerances
  • Fits in all standard C-slots used around the world or in T-slots in conjunction with an adapter, regardless of the gripper and cylinder profile
  • Saves time on initial installation and when replacing devices as the sensor can be inserted into the slot from above. The end caps of the drive do not have to be removed.
  • Predictive condition monitoring of pneumatic drives and machine processes via an actuator and process diagnosis function

Features:

  • Position feedback with a measuring range of up to 50 mm
  • Up to 3 digital switching signals
  • 8 switching points via IO-Link
  • Dynamic teach-in for up to 3 switching signals
  • Actuator diagnosis data: piston velocity, cylinder stroke, magnetic field strengths, etc.
  • Process diagnosis data: temperature, vibration, position, max. acceleration

No documents available
