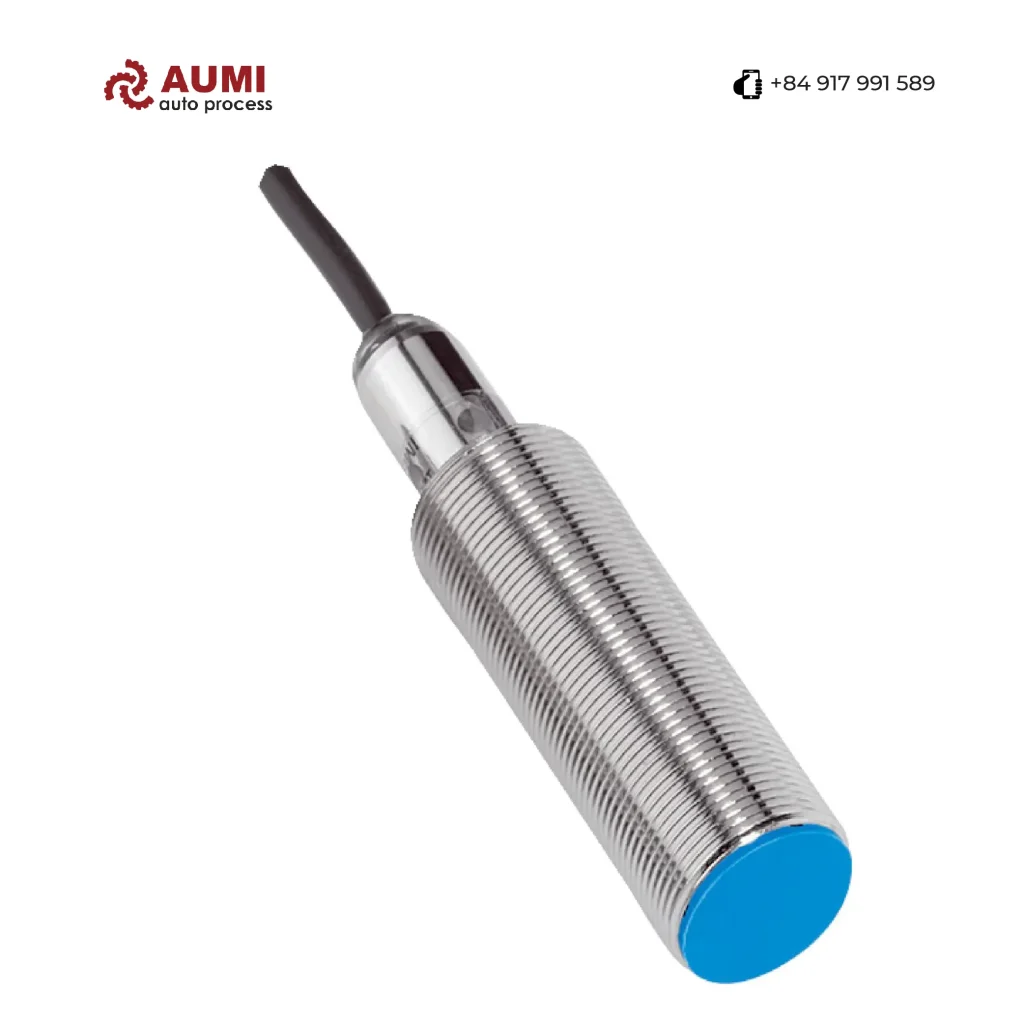

Inductive sensor IME18-08BDSZQ9S SICK 8 mm NO

Name: Inductive sensor IME18-08BDSZQ9S SICK 8 mm NO
SKU: 14954
Availability: InStock

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

Sensing range 8 mm; Thread size M18; Switching output NO; Connection type Cable with M12 male connector, 4-pin, 0.3 m; Installation type Flush; Switching frequency 1,000 Hz

Online support

Call

Chat Zalo

Messenger

Download Datasheet

IME18-08BDSZQ9S SICK is inductive sensor, sensing range 8 mm, thread size M18, switching output NO, connection type Cable with M12 male connector, 4-pin, 0.3 m, installation type Flush, switching frequency 1,000 Hz. Inductive proximity sensor for metal detection in various industrial applications

Thread size	M18 x 1
Sensing range Sn	8 mm
Safe sensing range Sa	6.48 mm
Installation type	Flush
Switching frequency	1,000 Hz
Connection type	Cable with M12 male connector, 4-pin, 0.3 m
Switching output	–
Output function	NO
Enclosure rating	IP67
Items supplied	Mounting nut, brass, nickel-plated (2x)
Supply voltage	10 V DC … 30 V DC
Continuous current Ia	≤ 100 mA
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	67 mm
Thread length	52 mm
Ambient operating temperature	–25 °C … +75 °C
Special features	–

🔗 View all genuine SICK products available at AUMI »»»

🔗 Discover other SICK proximity sensors series »»»

🔗 View detailed specifications on the official SICK website »»»

At glance

Inductive standard sensors for economical use in industrial environments
SICK’s inductive sensors offer precise detection, less downtime and a long service life.
The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process.
The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs.
IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
