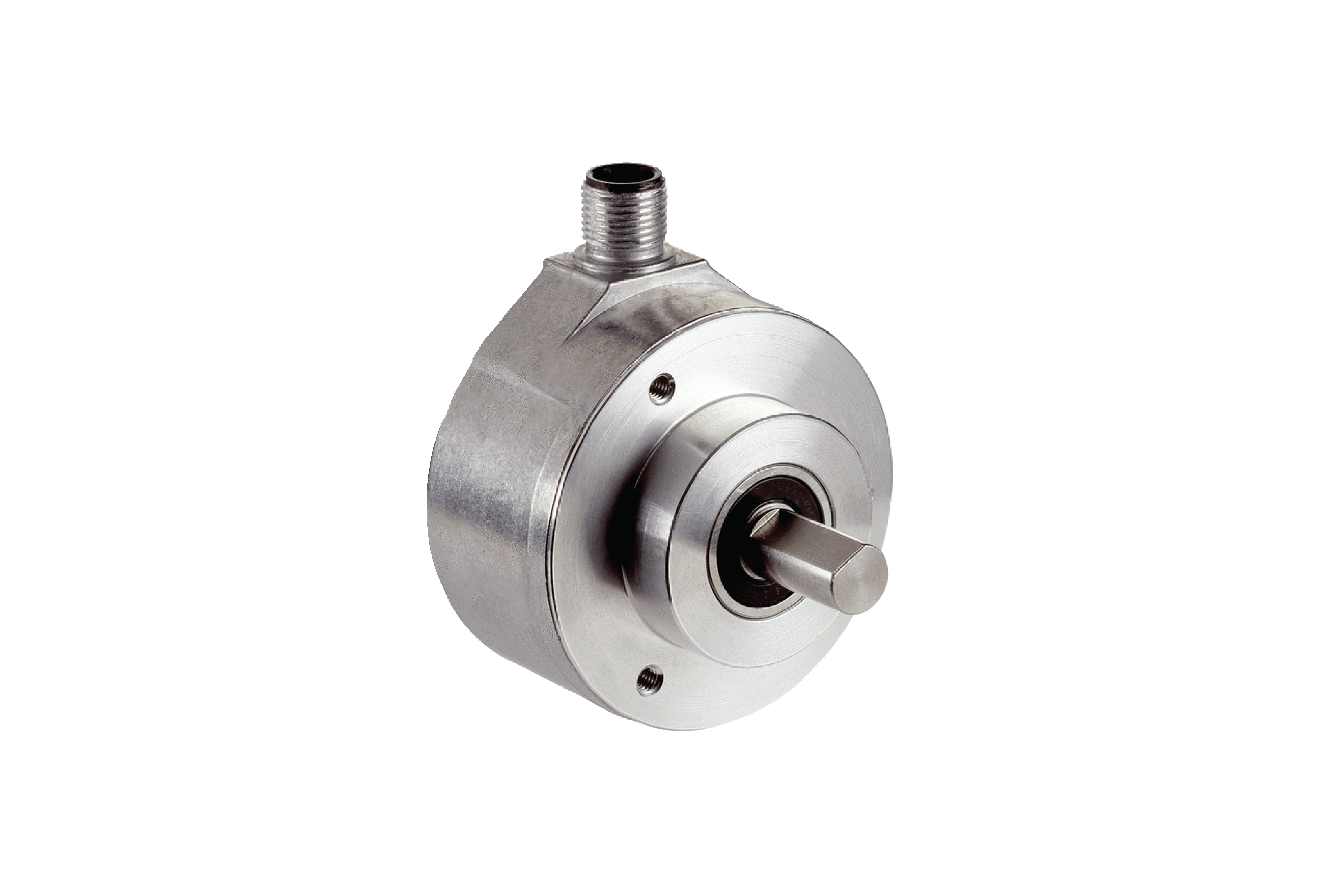

Incremental encoders DFS60

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

Pulses per revolution: 0 ... 65,536
Sine/cosine periods per revolution: 1,024
Mechanical design: Solid shaft, Servo flange/ Solid shaft, face mount flange/ Blind hollow shaft/ Through hollow shaft
Shaft diameter: 6 mm/ 10 mm/ 8 mm/ 3/8"/ 12 mm/ 1/2″/ 14 mm/ 15 mm/ 5/8″
Programmability via the PGT-08 programming software and the PGT-10-Pro display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs
Electrical interfaces: 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss

Online support

Phone

Zalo

Messenger

Features:

Communication interface: Incremental
Pulses per revolution: 0 … 65,536
Sine/cosine periods per revolution: 1,024
Mechanical design: Solid shaft, Servo flange/ Solid shaft, face mount flange/ Blind hollow shaft/ Through hollow shaft
Shaft diameter: 6 mm/ 10 mm/ 8 mm/ 3/8″/ 12 mm/ 1/2″/ 14 mm/ 15 mm/ 5/8″
Enclosure rating: IP67/ IP65
Programmable/configurable: – / ✔
Output frequency: ≤ 600 kHz/ ≤ 300 kHz/ ≤ 820 kHz/ ≤ 200 kHz

Mechanics/ Electronics:

Supply voltage: 4.5 … 5.5 V/ 10 … 32 V/ 4.5 … 32 V
Communication Interface detail: TTL / RS-422/ HTL / Push pull/ Sin/Cos/ TTL / HTL
Connection type: Male connector, M23, 12-pin, radial/ Male connector, M23, 12-pin, axial/ Male connector, M12, 8-pin, radial/ Male connector, M12, 8-pin, axial/ Cable, 8-wire, universal
Housing material/ Shaft material: Aluminum/ Stainless steel
Temperature range: –40 °C … +100 °C/ –30 °C … +100 °C/ 0 °C … +85 °C/ –40 °C … +100 °C

At a glance:

High resolution of up to 16 bits ensures precise measurements
Permanent and safe operation due to a high enclosure rating, temperature resistance and a long bearing lifetime
Programmability via the PGT-08 programming software and the PGT-10-Pro display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs
Optional programming: Output voltage, zero pulse position, zero impulse width, pulse number and counting direction
Electrical interfaces: 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss
Mechanical interfaces: Face mount flange or servo flange, blind hollow shaft or through hollow shaft

Technical data:

Pulses per revolution: 0 ... 65,536
Sine/cosine periods per revolution: 1,024
Mechanical design: Solid shaft, Servo flange/ Solid shaft, face mount flange/ Blind hollow shaft/ Through hollow shaft
Shaft diameter: 6 mm/ 10 mm/ 8 mm/ 3/8"/ 12 mm/ 1/2″/ 14 mm/ 15 mm/ 5/8″
Connection type: Male connector, M23, 12-pin, radial/ Male connector, M23, 12-pin, axial/ Male connector, M12, 8-pin, radial/ Male connector, M12, 8-pin, axial/ Cable, 8-wire, universal
Communication interface: Incremental
Communication Interface detail: TTL / RS-422/ HTL / Push pull/ Sin/Cos/ TTL / HTL
Supply voltage: 4.5 ... 5.5 V/ 10 ... 32 V/ 4.5 ... 32 V
Enclosure rating: IP67/ IP65
Programmable/configurable: – / ✔
Output frequency: ≤ 600 kHz/ ≤ 300 kHz/ ≤ 820 kHz/ ≤ 200 kHz
Operating temperature range: –40 °C ... +100 °C/ –30 °C ... +100 °C/ 0 °C ... +85 °C/ –40 °C ... +100 °C
