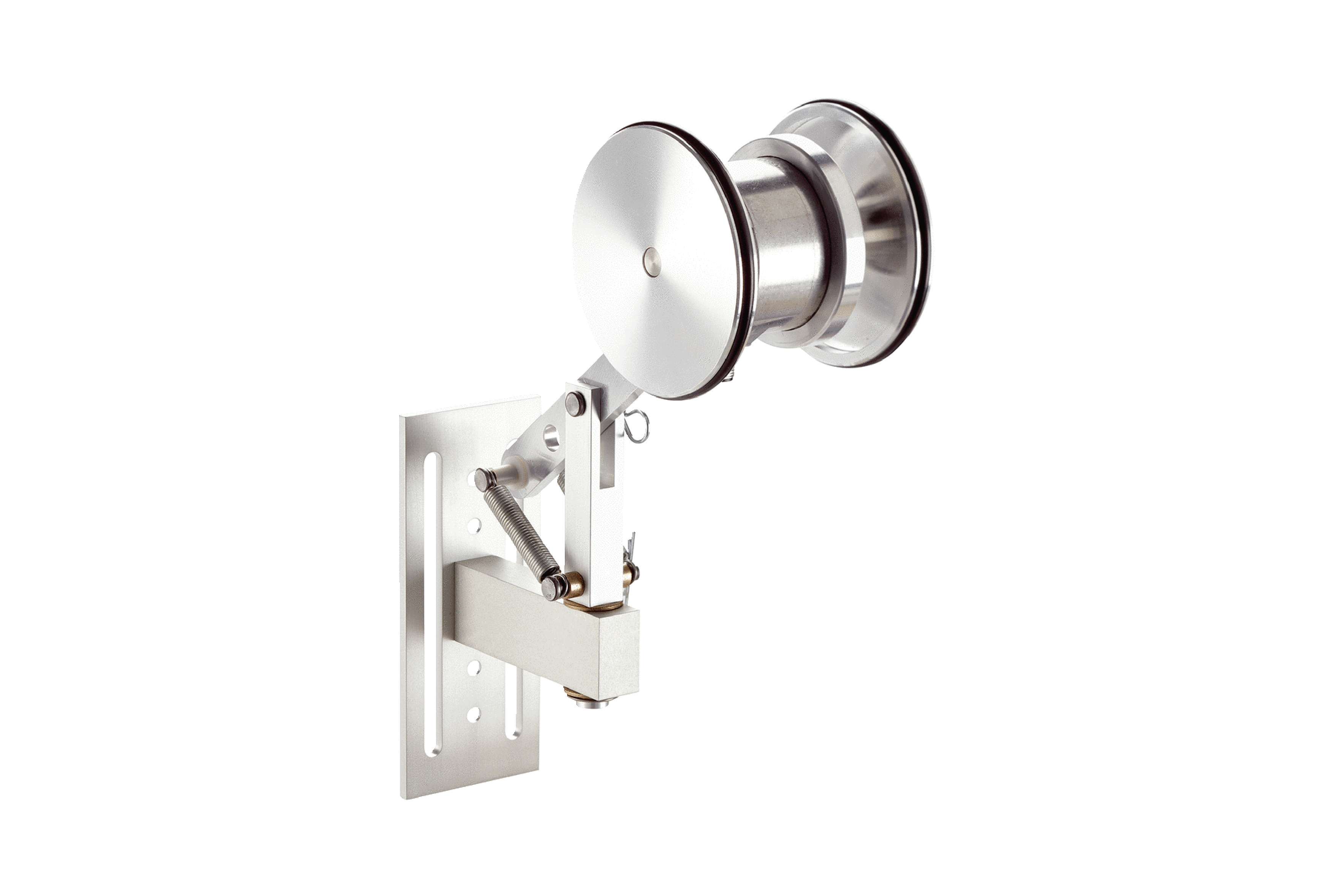

Measuring wheel encoders DFV60

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Resolution in pulses/mm: 218.45 / 3.41
  • Spring deflection spring arm: ± 10 mm
  • Measuring wheel circumference: 300 mm
  • Measuring wheel surface: O-ring NBR70
  • The high level of spring tension enables use in harsh environmental conditions
  • Programmability via the PGT-08 programming software and the PGT-10-S display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs
  • Electrical interfaces: 5V & 24V TTL/RS-422, 24 V HTL/push pull
Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Part number:

Product Part no. Communication Interface detail Programmable/configurable Connection Length of cable Resolution in pulses/mm
DFV60B-22EZ0-S01 1051284 HTL No male connector 0.1
DFV60A-22PM65536 1051337 TTL Yes cable 5 m 218.45
DFV60A-22PC65536 1051309 TTL Yes male connector 218.45
DFV60A-22PM00S09 1102062 TTL Yes cable 5 m 16.667
DFV60A-22PZ00S13 1123858 HTL Yes cable 5 m 65.54
DFV60A-22PM00S06 1083028 TTL Yes cable 5 m 20
DFV60A-22PC00S12 1115178 TTL Yes male connector 131
DFV60E-22EC01024 1060308 HTL No male connector 3.41
DFV60B-22EZ0-S03 1051292 HTL No male connector 5
DFV60E-22EK01024 1060309 HTL No cable 1.5 m 3.41
DFV60A-2ZPC00S14 1130709 TTL Yes male connector 27.32
DFV60A-22PK65536 1051331 TTL Yes cable 1.5 m 218.45
DFV60A-22PC00S04 1082234 TTL Yes male connector 3.33
DFV60A-22PC00S08 1106601 TTL Yes male connector 27.306
DFV60A-22PL65536 1051334 TTL Yes cable 3 m 218.45
At a glance:
  • High-resolution, programmable measuring wheel incremental encoder
  • Universal-use spring arm ensures fast and simple mounting
  • The high level of spring tension enables use in harsh environmental conditions
  • Programmability via the PGT-08 programming software and the PGT-10-S display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs
  • 300 mm wheel circumference with o-ring made from NBR70
  • Electrical interfaces: 5V & 24V TTL/RS-422, 24 V HTL/push pull
Features:
  • Communication interface: Incremental
  • Resolution in pulses/mm: 218.45 / 3.41
  • Spring deflection spring arm: ± 10 mm
  • Measuring wheel circumference: 300 mm
  • Measuring wheel surface: O-ring NBR70
  • Programmable: ✔ / –
  • Protection class : IP65
Mechanics/ Electronics:
  • Supply voltage: 4.5 V ... 32 V
  • Communication Interface detail: TTL / HTL
  • Connection type: Male connector, M12, 8-pin, radial/ Cable, 8-wire, universal
  • Housing material/ Shaft material: Aluminum/ Stainless steel
Dimensions:
Connection diagram:
