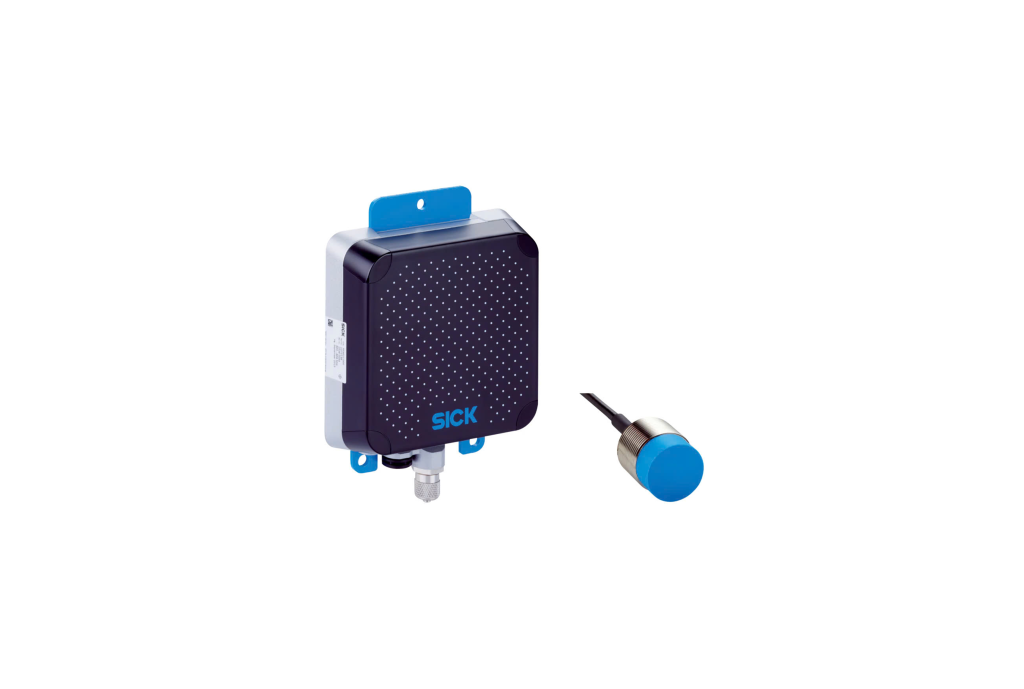

RFID antennas

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Optimally aligned antenna characteristics prevent faulty readings, therefore ensuring high process stability
  • Reliable operation thanks to rugged design - even under rough industrial environments
  • Rugged design in accordance with enclosure rating IP67
  • Ambient temperature ranges from −40 °C to +70 °C
  • Integrated feedback LEDs
Online support

Part number:

Product Part no. Frequency band Enclosure rating Ambient operating temperature
RFA641-3440 6034316 UHF (860 MHz … 960 MHz) IP54 -20 °C … 70 °C
RFA630-100 1059946 UHF (860 MHz … 960 MHz) IP67 -25 °C … 50 °C
RFA621-001 1073139 UHF (860 MHz … 960 MHz) IP67 -25 °C … 50 °C
RFA630-101 1059947 UHF (860 MHz … 960 MHz) IP67 -25 °C … 50 °C
RFA630-000 1058383 UHF (860 MHz … 960 MHz) IP67 -40 °C … 60 °C
RFA621-000 1073138 UHF (860 MHz … 960 MHz) IP67 -25 °C … 50 °C
RFA630-001 1058384 UHF (860 MHz … 960 MHz) IP67 -40 °C … 60 °C
RFA312-3733 1065473 HF (13.56 MHz) IP67 -20 °C … 50 °C

At a glance:

  • Optimally aligned antenna characteristics prevent faulty readings, therefore ensuring high process stability
  • Reliable operation thanks to rugged design - even under rough industrial environments
  • Low-cost extension of the detection range due to the connection of several external antennas to an RFU63x
  • Large ambient temperature range enables reliable use even under extreme weather conditions
  • Omni-directional reading of transponders thanks to circular antenna polarization

Features:

  • Read range up to 10 m for UHF antennas
  • Rugged design in accordance with enclosure rating IP67
  • Ambient temperature ranges from −40 °C to +70 °C
  • Integrated feedback LEDs
  • Circularly polarized UHF antennas

No documents available
