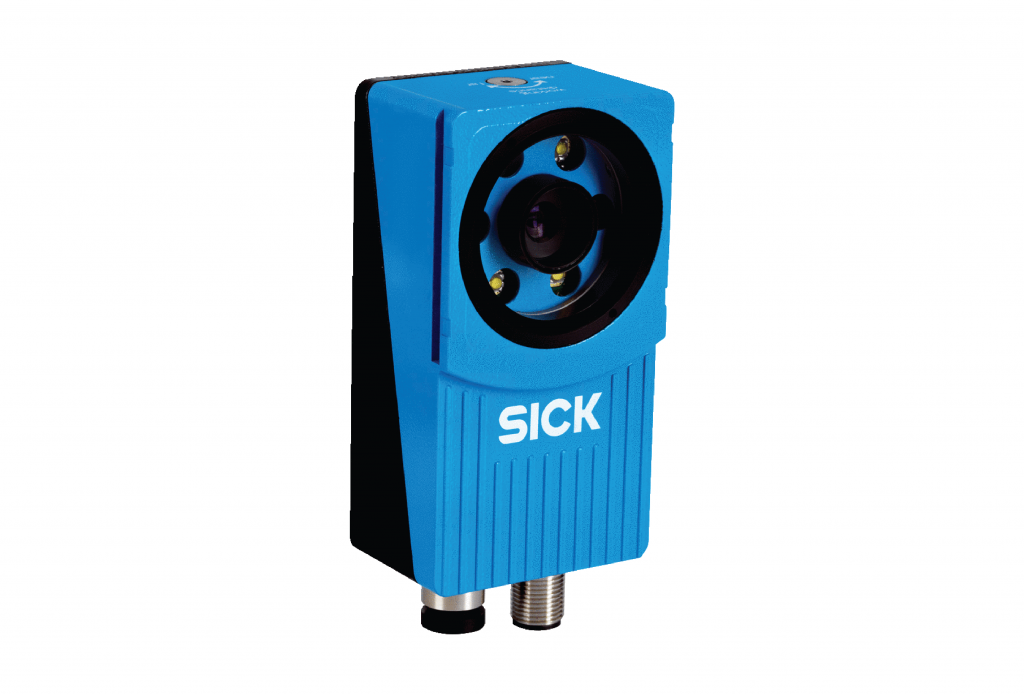

Features:
- Technology: 2D, snapshot, image analysis
- Sensor: CMOS matrix sensor, grayscale values
- Sensor resolution: 384 px x 384 px/ 640 px x 480 px
- Working distance internal illumination (min. … max.): 50 mm … 200 mm
- Light source: Internal lighting, White/ White, dome light/ UV/ Infrared
- Optical focus: Adjustable focus (manually)
- Lens: Exchangeable (S-mount) Integrated/ Exchangeable (S-mount), to be ordered separately as accessory
- Optical format: 1/3″
- Configuration software: SOPAS ET
- Dimensions: 100 mm x 53 mm x 38 mm
- Enclosure rating: IP67
Mechanics/ Electronics:
- Power supply: 24 V DC, ± 20 %
- Operator interfaces: Inspector Viewer/ Web server
- Ethernet: ✔ , TCP/IP
- EtherNet/IP™: ✔
- EtherCAT®: ✔ , DC (Distributed Clocks), EoE (Ethernet over EtherCAT®), FoE (Files Access over EtherCAT®), CoE (CAN over EtherCAT®)
- Digital inputs: 3xDI or 4 xDI
- Digital outputs: 3xDO or 4xDO
- Connection type: M12, 12-pin male, M12, 4-pin female
- Housing material: Aluminum
- Temperature range: 0 °C … +45 °C
