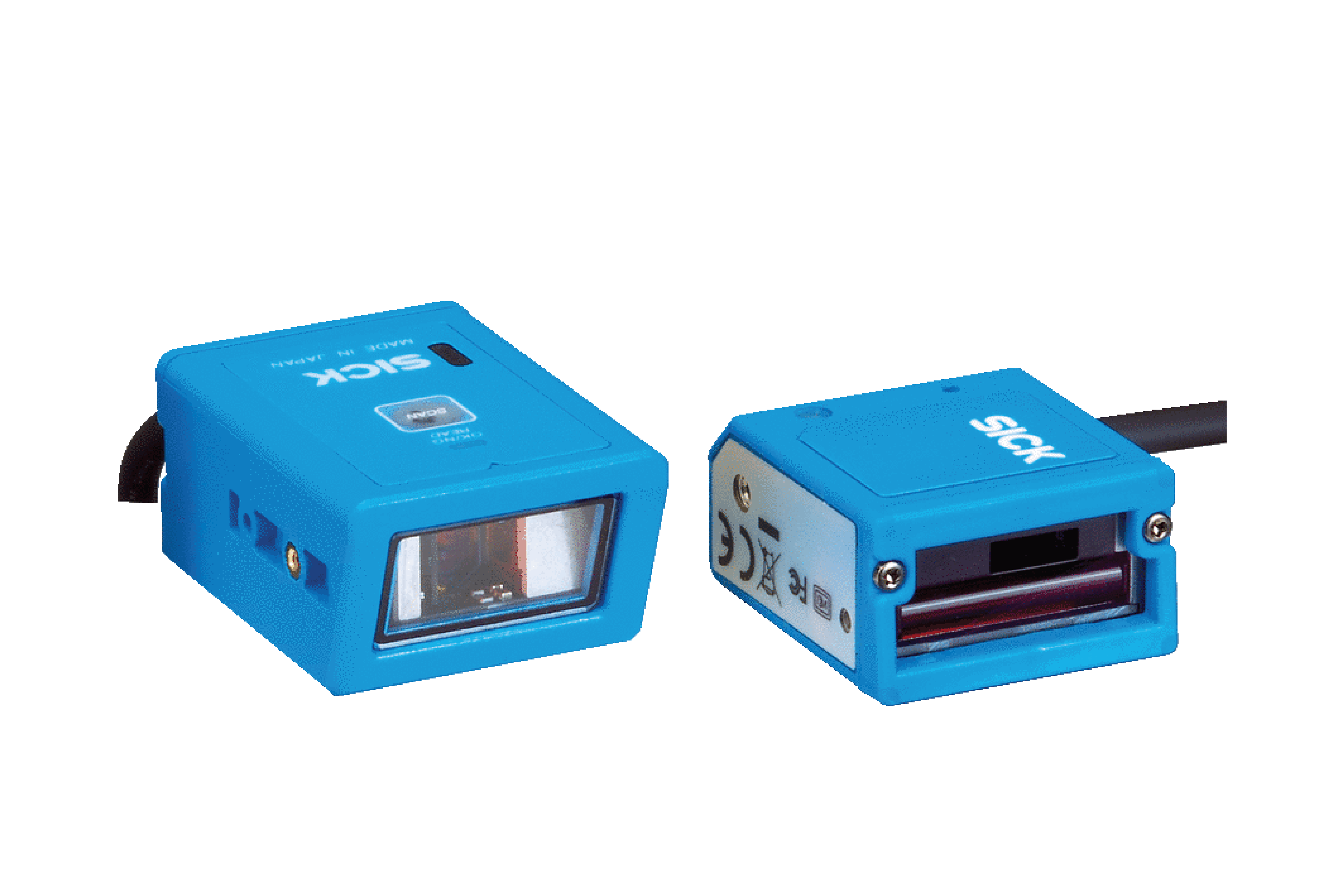

Fixed mount bar code scanners CLV50x

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Readable code structures: 1D
  • Code resolution: 0.15 mm ... 1 mm
  • Reading distance: 50 mm ... 630 mm
  • The CLV503 is ideal for slow moving applications – with a scanning frequency of 100 Hz.

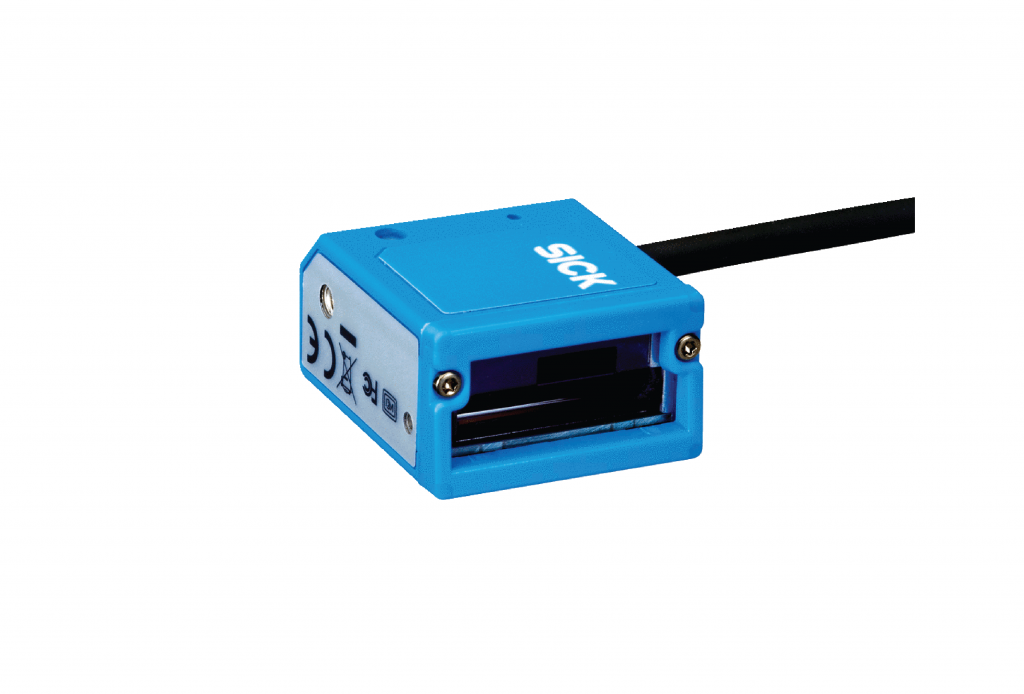

  • The CLV505 offers a high scanning frequency of 1,000 Hz and is suitable for conveyor speeds of up to 5 m/s, depending on the application.
  • Available as RS-232 variant with flying leads and as USB variant
Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Features:

  • Readable code structures: 1D
  • Optical focus: Fixed focus
  • Aperture angle: ≤ 44° / ≤ 40°
  • Scanning frequency: ≤ 1,000 Hz
  • Code resolution: 0.15 mm … 1 mm
  • Reading distance: 50 mm … 630 mm
  • Dimensions (L x W x H): 30 mm x 43.3 mm x 20 mm/ 29 mm x 34.5 mm x 17 mm
  • Weight: + 18.5 g / + 30 g
  • Enclosure rating: IP45/ IP54

Mechanics/ Electronics:

  • Power supply: 5VDC
  • Acoustic indicators: Beeper/buzzer
  • Communication interface: Serial/ USB
  • Connection type: Cable/ USB
  • Temperature range: 0 °C … +45 °C/ –10 °C … +45 °C
At a glance:
  • The mini line – small, simple, reliable, Compact design and easy operation enable installation in situations with limited space
  • The CLV503 is ideal for slow moving applications – with a scanning frequency of 100 Hz.
  • The CLV505 offers a high scanning frequency of 1,000 Hz and is suitable for conveyor speeds of up to 5 m/s, depending on the application.
  • Available as RS-232 variant with flying leads and as USB variant
  • One trigger input and two digital outputs for good read/no read outputs (for RS-232 variant only)
Technical data
  • Readable code structures: 1D
  • Optical focus: Fixed focus
  • Aperture angle: ≤ 44° / ≤ 40°
  • Scanning frequency: ≤ 1,000 Hz
  • Code resolution: 0.15 mm ... 1 mm
  • Reading distance: 50 mm ... 630 mm
  • Serial: ✔
  • USB: ✔
  • Weight: + 18.5 g / + 30 g
Dimensions:
Connection diagram:


No documents available
