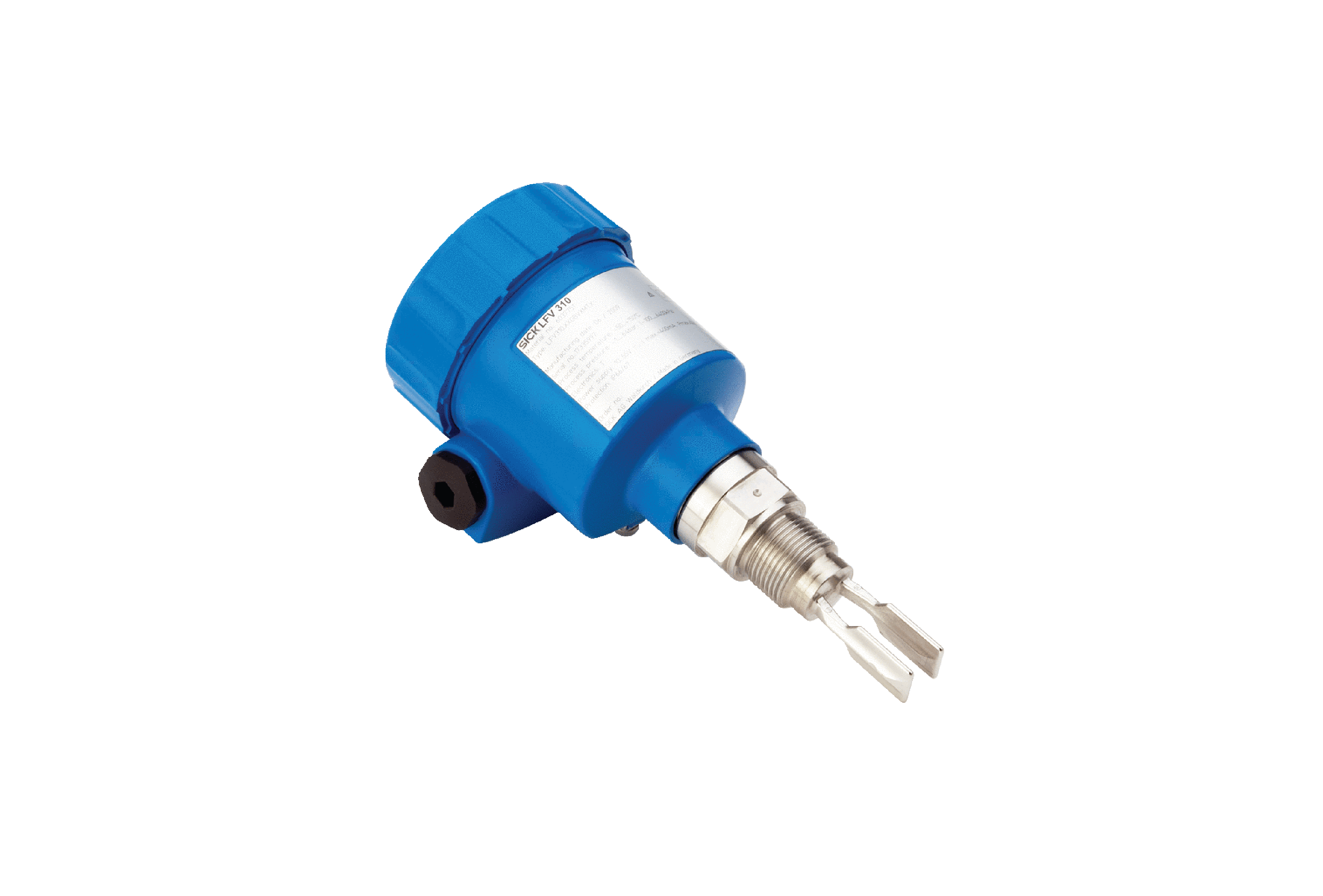

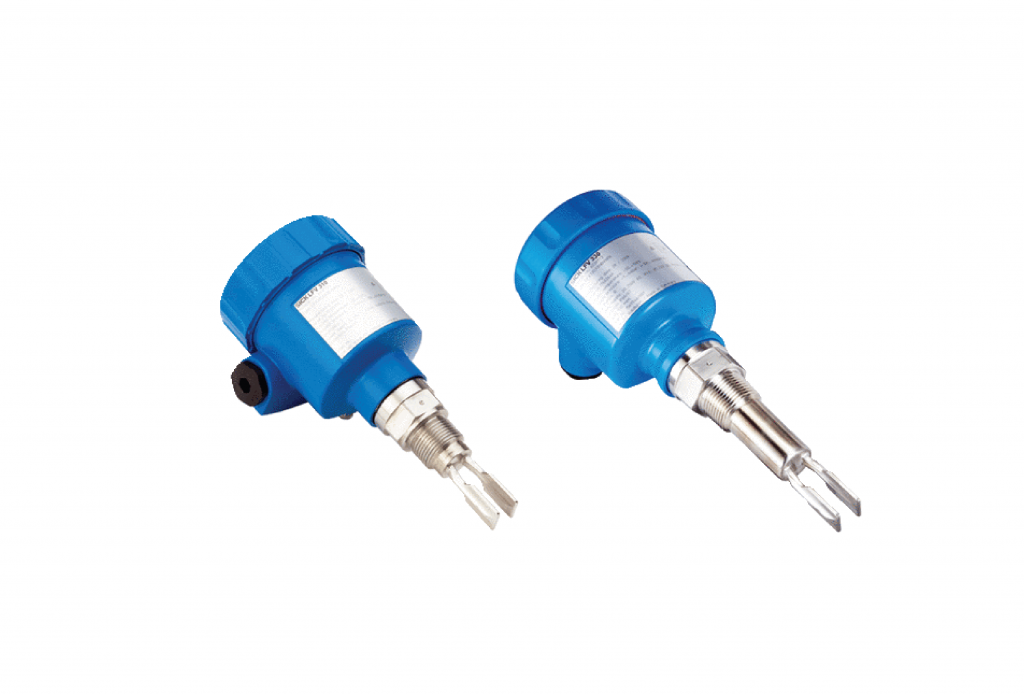

Level sensors LFV300

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Measurement principle: Vibrating level switch
  • Medium: Fluids
  • Process temperature: –50 °C ... +250 °C, See safety notes for ATEX devices
  • Output signal: Non-contact switch/ Double relay (DPDT)/ 1 x PNP/NPN/ NAMUR signal
  • Immune to deposit formation
  • Hygienic designs according to EHEDG and FDA, compatible for CIP and SIP
  • ATEX approval available
Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Features:

  • Measurement principle: Vibrating level switch
  • Detection principle: Contact
  • Medium: Fluids
  • Measurement: Switch
  • Process temperature: –50 °C … +250 °C, See safety notes for ATEX devices
  • Process pressure: –1 bar … 64 bar
  • Sensor length (L): 80 … 6000 mm
  • Accuracy of sensor element: ± 2 mm
  • Enclosure rating: IP66/ IP67

Mechanics/ Electronics:

  • Output signal: Non-contact switch/ Double relay (DPDT)/ 1 x PNP/NPN/ NAMUR signal
  • Connection type: M20 x 1.5
  • Housing material: Aluminium die-casting AlSi10Mg

At a glance:
  • Flexible and robust – Tuning Forks for all kinds of liquids
  • Universal technology works in all kinds of liquids
  • Process temperature up to 250 °C
  • Immune to deposit formation
  • Hygienic designs according to EHEDG and FDA, compatible for CIP and SIP
  • ATEX approval available
Technical data:
  • Measurement principle: Vibrating level switch
  • Detection principle: Contact
  • Medium: Fluids
  • Measurement: Switch
  • Process temperature: –50 °C ... +250 °C, See safety notes for ATEX devices
  • Process pressure: –1 bar ... 64 bar
  • Output signal: Non-contact switch/ Double relay (DPDT)/ 1 x PNP/NPN/ NAMUR signal
  • Accuracy of sensor element: ± 2 mm
Dimensions:
Connection diagram:

No documents available
