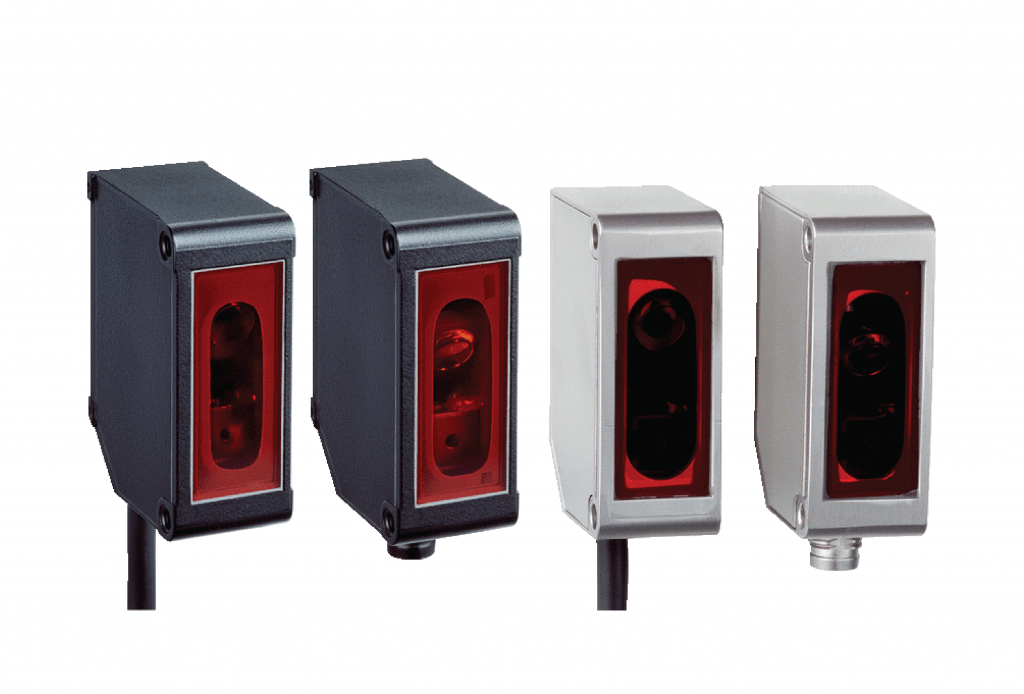

Displacement measurement sensors OD Mini

Name: Displacement measurement sensors OD Mini
SKU: 4320
Availability: InStock

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

Measuring range: 10 mm ... 250 mm
Linearity: ± 10 µm ... ± 100 µm
Repeatability: 20 µm/ 200 µm/ 1 µm/ 6 µm
Compact, lightweight sensor for precise measurement
High machine throughput thanks to reliable measurement, regardless of brightness and color of surface
Optimum performance even at high production speeds

Online support

Call

Chat Zalo

Messenger

Part number:

Product	Part no	Minimum required distance	Maximum required distance	Outputs	Number of digital outputs	Laser class
OD1-B100C50A15	6054087	50 mm	150 mm	Current output, PNP/NPN, selectable	3	1
OD1-B100H50I25	6050512	50 mm	150 mm	Current output, PNP/NPN, selectable	1	1
OD1-B035C15I25	6050524	20 mm	50 mm	Current output, PNP/NPN, selectable	1	1
OD1-B015H05A15	6054082	10 mm	20 mm	Current output, PNP/NPN, selectable	3	1
OD1-B015C05I25	6050520	10 mm	20 mm	Current output, PNP/NPN, selectable	1	1
OD1-B035C15Q15	6052309	20 mm	50 mm	PNP/NPN, selectable	1	1
OD1-B150F0AQ15	6052327	50 mm	250 mm	PNP/NPN, selectable	1	2
OD1-B100H50I14	6050511	50 mm	150 mm	Current output		1
OD1-B015C05A14	6050521	10 mm	20 mm	Current output, PNP/NPN, selectable	3	1
OD1-B100H50U25	6050514	50 mm	150 mm	voltage output, PNP/NPN, selectable	1	1
OD1-B100H50A14	6050515	50 mm	150 mm	Current output, PNP/NPN, selectable	3	1
OD1-B035H15U14	6050505	20 mm	50 mm	voltage output		1
OD1-B035H15U25	6050506	20 mm	50 mm	voltage output, PNP/NPN, selectable	1	1
OD1-B100H50U14	6050513	50 mm	150 mm	voltage output		1
OD1-B015H05U14	6050497	10 mm	20 mm	voltage output		1
OD1-B100C50I14	6050527	50 mm	150 mm	Current output		1
OD1-B100C50A14	6050529	50 mm	150 mm	Current output, PNP/NPN, selectable	3	1
OD1-B035H15A15	6054083	20 mm	50 mm	Current output, PNP/NPN, selectable	3	1
OD1-B100H50A15	6054084	50 mm	150 mm	Current output, PNP/NPN, selectable	3	1
OD1-B035C15Q14	6052308	20 mm	50 mm	PNP/NPN, selectable	1	1
OD1-B015H05U25	6050498	10 mm	20 mm	voltage output, PNP/NPN, selectable	1	1
OD1-B035C15A15	6054086	20 mm	50 mm	Current output, PNP/NPN, selectable	3	1
OD1-B015H05I14	6050495	10 mm	20 mm	Current output		1
OD1-B035C15I14	6050523	20 mm	50 mm	Current output		1
OD1-B015H05I25	6050496	10 mm	20 mm	Current output, PNP/NPN, selectable	1	1
OD1-B015C05A15	6054085	10 mm	20 mm	Current output, PNP/NPN, selectable	3	1
OD1-B150F0AQ14	6052326	50 mm	250 mm	PNP/NPN, selectable	1	2
OD1-B015C05I14	6050519	10 mm	20 mm	Current output		1
OD1-B035H15A14	6050507	20 mm	50 mm	Current output, PNP/NPN, selectable	3	1
OD1-B035H15I25	6050504	20 mm	50 mm	Current output, PNP/NPN, selectable	1	1
OD1-B035C15A14	6050525	20 mm	50 mm	Current output, PNP/NPN, selectable	3	1
OD1-B015H05A14	6050499	10 mm	20 mm	Current output, PNP/NPN, selectable	3	1
OD1-B035H15I14	6050503	20 mm	50 mm	Current output		1
OD1-B100C50I25	6050528	50 mm	150 mm	Current output, PNP/NPN, selectable	1	1

At a glance:

Compact, lightweight sensor for precise measurement
Small installation size and low weight also allow use in highly dynamic applications
Calculation of two sensorheads - easy possible over the external evaluation unit
High machine throughput thanks to reliable measurement, regardless of brightness and color of surface
Optimum performance even at high production speeds

Technical data:
