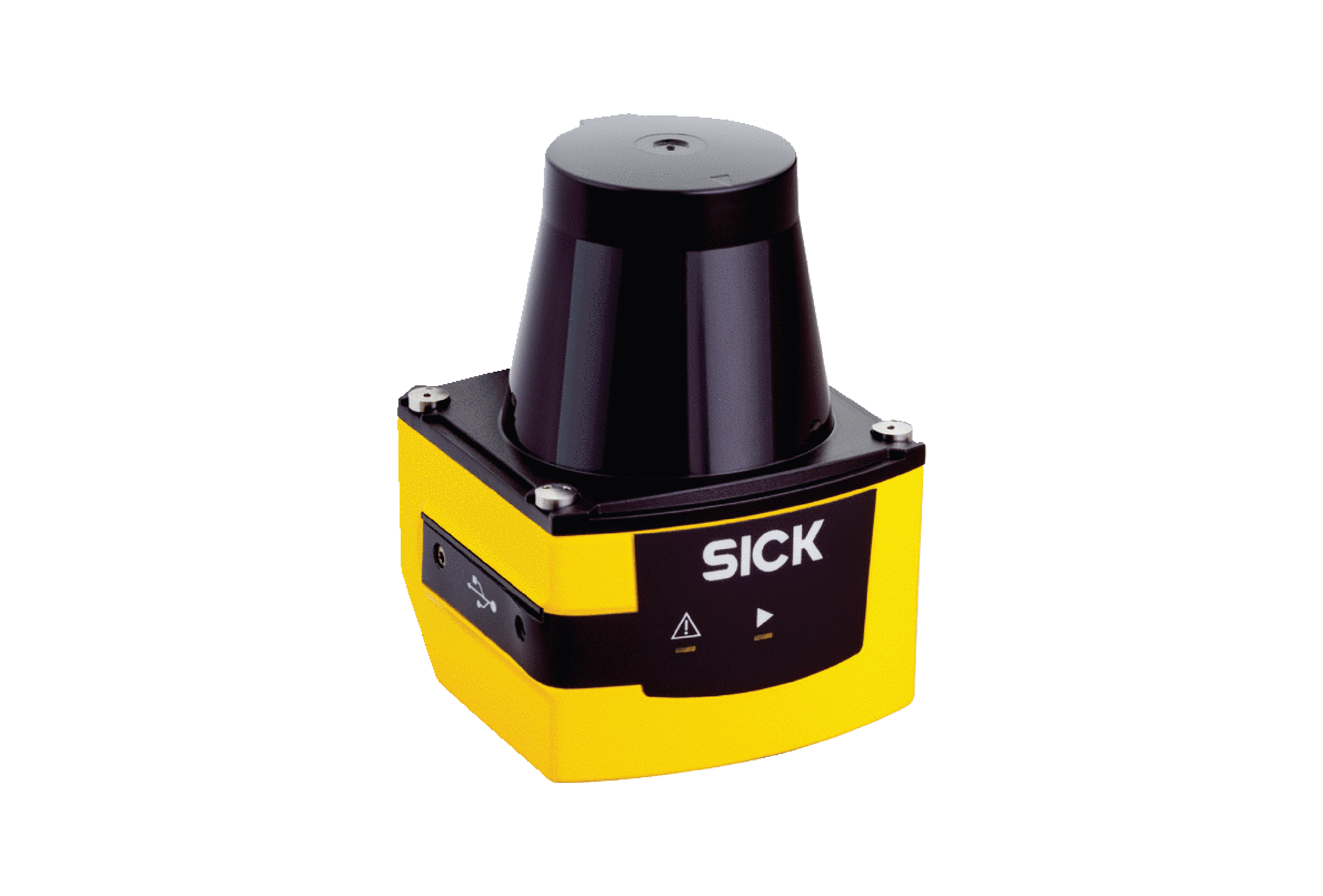

Features:
- Application: Indoor area
- Dimensions (W x H x D): 60 mm x 60 mm x 86 mm
- Protective field range: 4 m / 5 m
- Scanning angle: 270°
- Angular resolution: 0.33°
- Response time: ≤ 134 ms (1 scan, typ. 67 ms; 2 scans, ≤ 134 ms)
- Performance level: PL b (EN ISO 13849-1:2015)
- Angular resolution: 0.33°
- Number of field sets: 16 field triples (48 protective fields)
- Response time: 1 scan, typ. 67 ms, 2 scans, ≤ 134 ms
- Configuration method: PC with SOPAS Engineering Tool 2020
- Enclosure rating: IP67
Mechanics/ Electronics:
- Power supply: 9 V DC … 28 V DC
- Digital inputs: 4 (PNP, for field set switching)
- Digital outputs: 3 (PNP, to display a protective field violation, additional 1 x “Device Ready”)
- Communication interface: USB, Ethernet
- Temperature range: –25 °C … +50 °C
