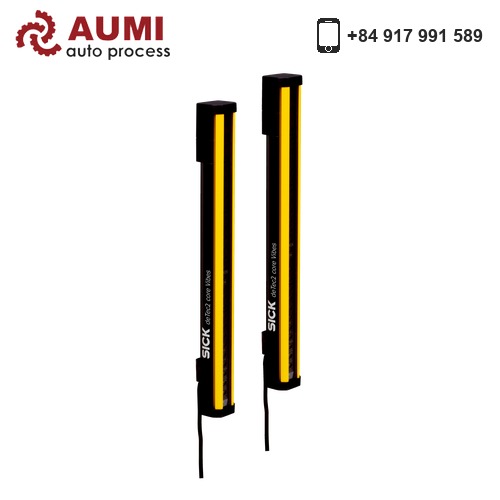

The product Safety light curtains C2C-SV10530A10000, C2C-EV10530A10000 is designed in accordance with European industrial standards, providing all essential technical specifications to help engineers easily select and integrate it into their systems. These specifications include measuring range/detection capability, accuracy, response time, output signal, power supply, IP protection rating, and operating environmental conditions.
Depending on the specific model and application, the device may support various connection options, communication protocols, or advanced features to meet the requirements of automation, safety, and reliability in industrial environments.
Below is the detailed technical specification table of the product:
| Features | |
| Product version | deTec2 Core Vibes |
| Application | Machines with strong shock or vibration loads |
| System part | Pair |
| Resolution | 30 mm |
| Scanning range | 15 m |
| Protective field height | 1,050 mm |
| Response time | 11 ms |
| No blind zones | Yes |
| Synchronization | Optical synchronization |
| Items supplied | Sender Receiver Test rod with diameter corresponding to the resolution of the safety light curtain Safety instruction Mounting instructions Operating instructions for download |
| Safety-related parameters | |
| Type | Type 2 (IEC 61496-1) |
| Safety integrity level | SIL 1 (IEC 61508) |
| Category | Category 2 (ISO 13849-1) |
| Performance level | PL c (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 31.0 x 10⁻⁹ |
| TM (mission time) | 20 years (ISO 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
