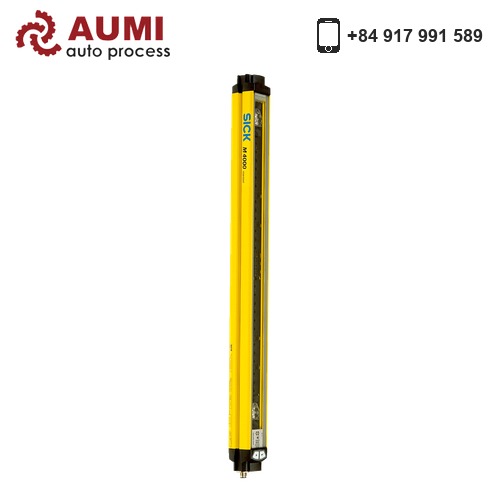

The product Safety light-beam sensors M40Z-025022AU0 is designed in accordance with European industrial standards, providing all essential technical specifications to help engineers easily select and integrate it into their systems. These specifications include measuring range/detection capability, accuracy, response time, output signal, power supply, IP protection rating, and operating environmental conditions.
Depending on the specific model and application, the device may support various connection options, communication protocols, or advanced features to meet the requirements of automation, safety, and reliability in industrial environments.
Below is the detailed technical specification table of the product:
| Features | |
| Specialty | Actuator Sensor Interface replaces the system connection |
| Functional principle | Active/passive |
| System part | Active unit |
| Type of diversion | Mirror deflection |
| Scanning range | 0.5 m … 7.5 m |
| Number of beams | 2 |
| Beam separation | 500 mm |
| Response time | 10 ms |
| End cap with integrated LED | ✔ |
| Safety-related parameters | |
| Type | Type 4 (IEC 61496-1) |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 6.6 x 10⁻⁹ (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Functions | |
| Functions | Delivery status |
| Beam coding | ✔ |
| Interfaces | |
| Actuator Sensor Interface | ✔ |
| System connection | Male connector M12, 4-pin |
| Configuration method | Configuration buttons |
| Display elements | LEDs 7-segment display |
| End cap with integrated LED | ✔ |
| Electronics | |
| Protection class | III (IEC 61140) |
| Supply voltage VS | (26 V DC … 31.6 V DC) |
| Power consumption | ≤ 0.2 A |
| Mechanics | |
| Dimensions | See dimensional drawing |
| Housing cross-section | 52 mm x 55.5 mm |
| Housing | Aluminum alloy ALMGSI 0.5, powder coated |
| Front screen | Polycarbonate, scratch-resistant coating |
| Ambient data | |
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | –30 °C … +55 °C |
| Storage temperature | –30 °C … +70 °C |
| Air humidity | 15 % … 95 %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz … 55 Hz (EN 60068-2-6) |
| Shock resistance | 10 g, 16 ms (EN 60068-2-27) |
| Other information | |
| Wave length | 850 nm |
| Certificates | |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ULus approval | ✔ |
| cUL approval | ✔ |
| EC-Type-Examination approval | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| Classifications | |
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ECLASS 13.0 | 27272703 |
| ECLASS 14.0 | 27272703 |
| ECLASS 15.0 | 27272703 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| ETIM 9.0 | EC001832 |
| ETIM 10.0 | EC001832 |
| UNSPSC 091201.0 | 46171620 |
| UNSPSC 100501.0 | 46171620 |
| UNSPSC 111201.0 | 46171620 |
| UNSPSC 120901.0 | 46171620 |
| UNSPSC 131201.0 | 46171620 |
| UNSPSC 140801.0 | 46171620 |
| UNSPSC 151101.0 | 46171620 |
| UNSPSC 160901.0 | 46171620 |
| UNSPSC 171001.0 | 46171620 |
| UNSPSC 180801.0 | 46171620 |
| UNSPSC 190501.0 | 46171620 |
| UNSPSC 200601.0 | 46171620 |
| UNSPSC 210901.0 | 46171620 |
| UNSPSC 220601.0 | 46171620 |
| UNSPSC 230701.0 | 46171620 |
| UNSPSC 240301.0 | 46171620 |
| UNSPSC 250901.0 | 46171620 |
| UNSPSC 260801.0 | 46171620 |
