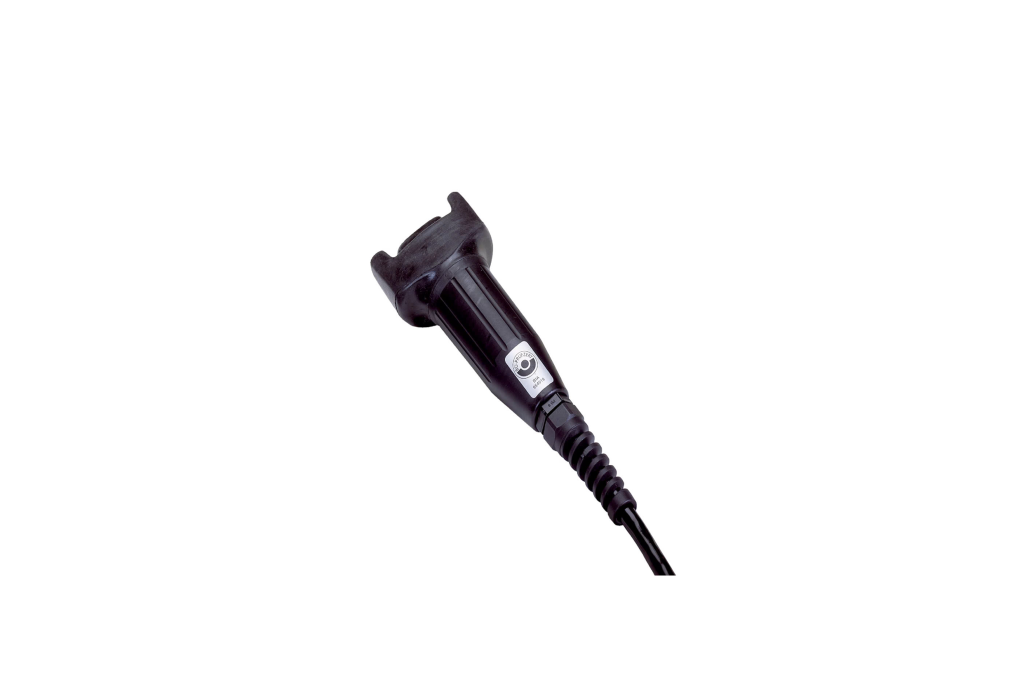

Safety switches E100

Brand
Status In stock
Price: Please contact
(Call - Chat Zalo - Send Email)
  • Plus/minus buttons for additional control of direction of movement
  • Different cable lengths available to meet customer application requirements
  • Variant with additional plus/minus buttons
  • Complies to the standard IEC/EN 60947-5-8
Online support
Phone Call Zalo Chat Zalo Messenger Messenger

Part number:

Product Part no. Enclosure rating Length of cable Plus/minus button Pushbuttons Type of connection cable
E100-A2A22S05A 6012141 IP67 5 m No No straight
E100-A2A22S10A 6021916 IP67 10 m No No straight
E100-B2A22S05A 6022879 IP65 5 m Yes Yes straight
E100-B2A22S25A 6033234 IP65 25 m Yes Yes straight
E100-A2A22S25A 6049337 IP67 25 m No No straight
E100-B2A22S10A 6022880 IP65 10 m Yes Yes straight
E100-A2A22C05A 6021917 IP67 5 m No No Coil

At a glance:

  • Personal protection with enabling switches: increased safety in setup mode when protective devices are deactivated
  • Plus/minus buttons for additional control of direction of movement
  • Different cable lengths available to meet customer application requirements

Features:

  • Plastic housing with connected cable
  • 3-stage functional structure (off-on-off)
  • Slow-action switching elements with four contacts
  • Variant with additional plus/minus buttons
  • Complies to the standard IEC/EN 60947-5-8
