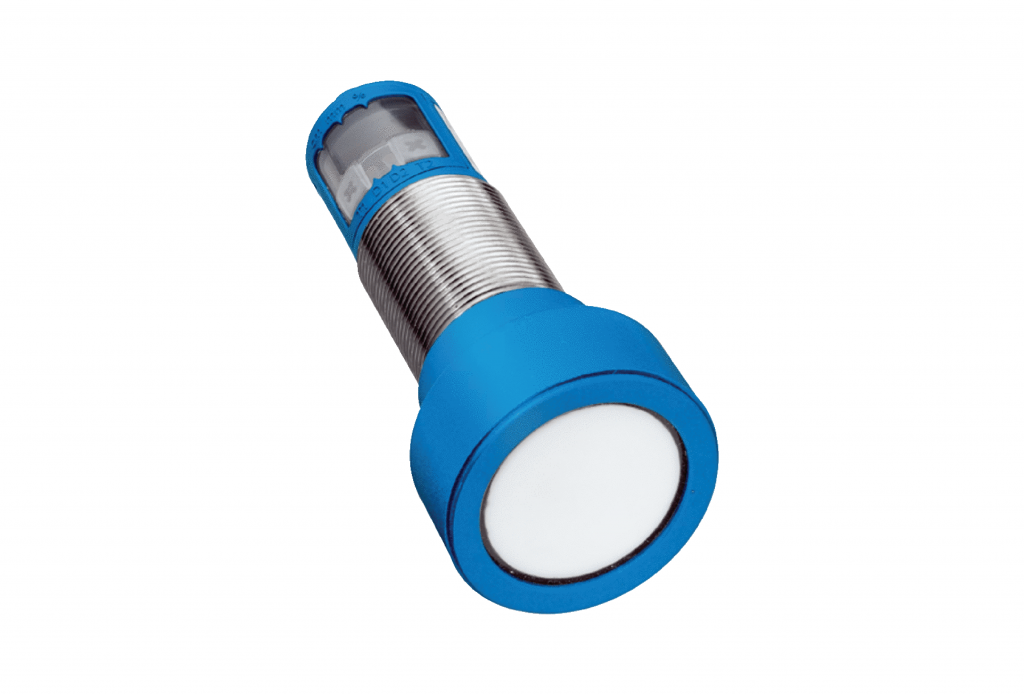

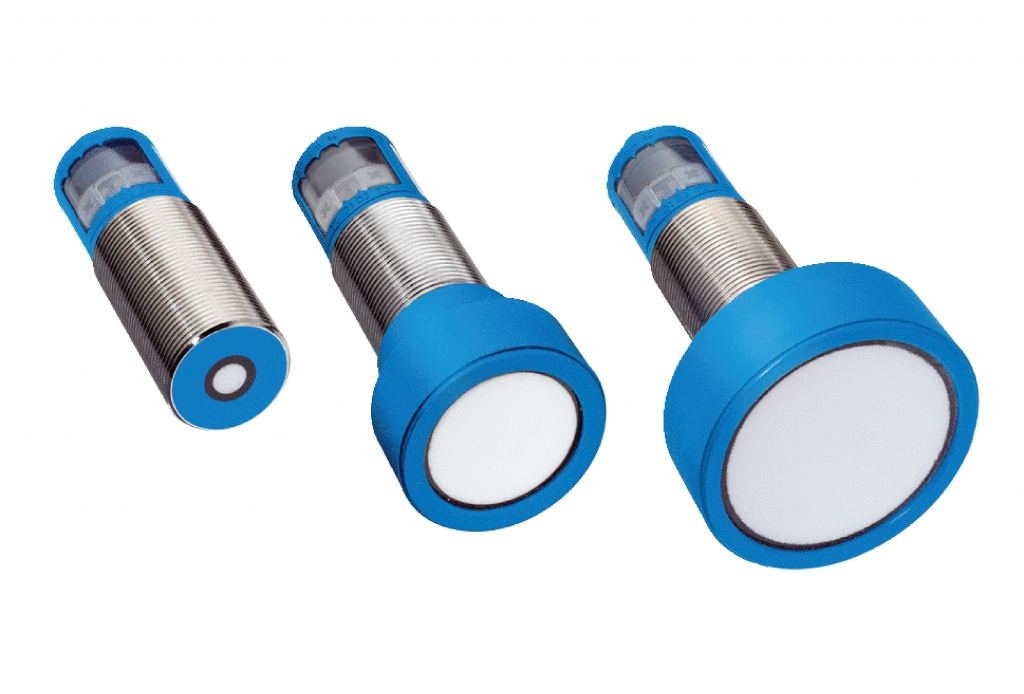

Ultrasonic sensors UM30

Name: Ultrasonic sensors UM30
SKU: 4379
Availability: InStock

Brand

Status In stock

Price: Please contact

(Call - Chat Zalo - Send Email)

Operating range: 30 mm ... 6,000 mm
Resolution: ≥ 0.18 mm
ObSB mode enables detection of any object between the sensor and a taught-in background
Reliable measurement, regardless of material color, transparency, gloss, or ambient light
Display enables fast and flexible sensor adjustment
Immune to dirt, dust, humidity, and fog

Online support

Call

Chat Zalo

Messenger

Part number:

Product	Part no.:	Communication interface	Minimum required distance	Maximum required distance	Limiting range	Maximum permitted response time	Outputs	Maximum permitted width	Maximum permitted height	Maximum permitted depth
UM30-214118	6036924	–	350 mm	3400 mm	5000 mm	180 ms	Current output, voltage output, PNP	47.5 mm	47.5 mm	102 mm
UM30-215118	6036925	–	600 mm	6000 mm	8000 mm	240 ms	Current output, voltage output, PNP	65 mm	65 mm	105 mm
UM30-211111	6037660	–	30 mm	250 mm	350 mm	32 ms	PNP	30 mm	30 mm	84 mm
UM30-213111	6037537	–	200 mm	1300 mm	2000 mm	92 ms	PNP	30 mm	30 mm	84 mm
UM30-212114	6037675	–	65 mm	350 mm	600 mm	64 ms	NPN	30 mm	30 mm	84 mm
UM30-211113	6036916	–	30 mm	250 mm	350 mm	32 ms	Current output, voltage output	30 mm	30 mm	84 mm
UM30-214112	6037667	–	350 mm	3400 mm	5000 mm	180 ms	PNP	47.5 mm	47.5 mm	102 mm
UM30-215113	6036920	–	600 mm	6000 mm	8000 mm	240 ms	Current output, voltage output	65 mm	65 mm	105 mm
UM30-212111	6037661	–	65 mm	350 mm	600 mm	64 ms	PNP	30 mm	30 mm	84 mm
UM30-215112	6037668	–	600 mm	6000 mm	8000 mm	240 ms	PNP	65 mm	65 mm	105 mm
UM30-21411B	6068450	IO-Link	350 mm	3400 mm	5000 mm	180 ms	push-pull: PNP/NPN	47.5 mm	47.5 mm	102 mm
UM30-215115	6037673	–	600 mm	6000 mm	8000 mm	240 ms	NPN	65 mm	65 mm	105 mm
UM30-214114	6037677	–	350 mm	3400 mm	5000 mm	180 ms	NPN	47.5 mm	47.5 mm	102 mm
UM30-21111B	6068447	IO-Link	30 mm	250 mm	350 mm	32 ms	push-pull: PNP/NPN	30 mm	30 mm	84 mm
UM30-21211B	6068448	IO-Link	65 mm	350 mm	600 mm	64 ms	push-pull: PNP/NPN	30 mm	30 mm	84 mm
UM30-212113	6036917	–	65 mm	350 mm	600 mm	64 ms	Current output, voltage output	30 mm	30 mm	84 mm
UM30-213114	6037676	–	200 mm	1300 mm	2000 mm	92 ms	NPN	30 mm	30 mm	84 mm
UM30-213115	6037671	–	200 mm	1300 mm	2000 mm	92 ms	NPN	30 mm	30 mm	84 mm
UM30-214115	6037672	–	350 mm	3400 mm	5000 mm	180 ms	NPN	47.5 mm	47.5 mm	102 mm
UM30-212112	6037665	–	65 mm	350 mm	600 mm	64 ms	PNP	30 mm	30 mm	84 mm
UM30-21311B	6068449	IO-Link	200 mm	1300 mm	2000 mm	92 ms	push-pull: PNP/NPN	30 mm	30 mm	84 mm
UM30-212118	6036922	–	65 mm	350 mm	600 mm	64 ms	Current output, voltage output, PNP	30 mm	30 mm	84 mm
UM30-213113	6036918	–	200 mm	1300 mm	2000 mm	92 ms	Current output, voltage output	30 mm	30 mm	84 mm
UM30-212111S10	6050943	–	65 mm	350 mm	600 mm	64 ms	PNP	30 mm	30 mm	84 mm
UM30-211112	6037664	–	30 mm	250 mm	350 mm	32 ms	PNP	30 mm	30 mm	84 mm
UM30-214113	6036919	–	350 mm	3400 mm	5000 mm	180 ms	Current output, voltage output	47.5 mm	47.5 mm	102 mm
UM30-21511B	6068451	IO-Link	600 mm	6000 mm	8000 mm	240 ms	push-pull: PNP/NPN	65 mm	65 mm	105 mm
UM30-211114	6037674	–	30 mm	250 mm	350 mm	32 ms	NPN	30 mm	30 mm	84 mm
UM30-215111	6037663	–	600 mm	6000 mm	8000 mm	240 ms	PNP	65 mm	65 mm	105 mm
UM30-214111	6037662	–	350 mm	3400 mm	5000 mm	180 ms	PNP	47.5 mm	47.5 mm	102 mm
UM30-215114	6037678	–	600 mm	6000 mm	8000 mm	240 ms	NPN	65 mm	65 mm	105 mm
UM30-211115	6037669	–	30 mm	250 mm	350 mm	32 ms	NPN	30 mm	30 mm	84 mm
UM30-213118	6036923	–	200 mm	1300 mm	2000 mm	92 ms	Current output, voltage output, PNP	30 mm	30 mm	84 mm
UM30-213111S12	6057291	–	200 mm	1300 mm	2000 mm	92 ms	PNP	30 mm	30 mm	84 mm
UM30-211118	6036921	–	30 mm	250 mm	350 mm	32 ms	Current output, voltage output, PNP	30 mm	30 mm	84 mm
UM30-212115	6037670	–	65 mm	350 mm	600 mm	64 ms	NPN	30 mm	30 mm	84 mm
UM30-213112	6037666	–	200 mm	1300 mm	2000 mm	92 ms	PNP	30 mm	30 mm	84 mm

At a glance:

ObSB mode enables detection of any object between the sensor and a taught-in background
Reliable measurement, regardless of material color, transparency, gloss, or ambient light
Sensing range up to 8,000 mm
Display enables fast and flexible sensor adjustment
Immune to dirt, dust, humidity, and fog
Versatile interfaces including IO-Link available
Adjustable sensitivity

Features:

Measuring range

Operating range: 30 mm ... 6,000 mm

Limiting range: 350 mm ... 8,000 mm

Resolution: ≥ 0.18 mm
Repeatability: ± 0.15 %
Response time: 32 ms ... 240 ms/ 32 ms ... 240 ms
Output time: 8 ms ... 60 ms
Switching frequency: 25 Hz/ 12 Hz/ 8 Hz/ 4 Hz/ 3 Hz
Enclosure rating: IP65 / IP67
Sending axis: Straight
Indication: LED display, 2 x LED

Mechanics/ Electronics:

Power supply: DC 9 V ... 30 V
Analog output: 4 mA ... 20 mA, ≤ 500 Ω/ 0 V ... 10 V, ≥ 100,000 Ω
Digital output: PNP / NPN / push-pull: PNP/NPN
IO-Link: ✔ , IO-Link V1.1
Connection type: Male connector, M12-5 pin
Housing material: Nickel-plated brass, PBT, display: TPU, ultrasonic transducer: polyurethane foam, glass epoxy resin
Ambient temperature operation: –25 °C ... +70 °C

Dimensions:

Connection diagram:
