Detailed technical data
- Type: Rail mounted

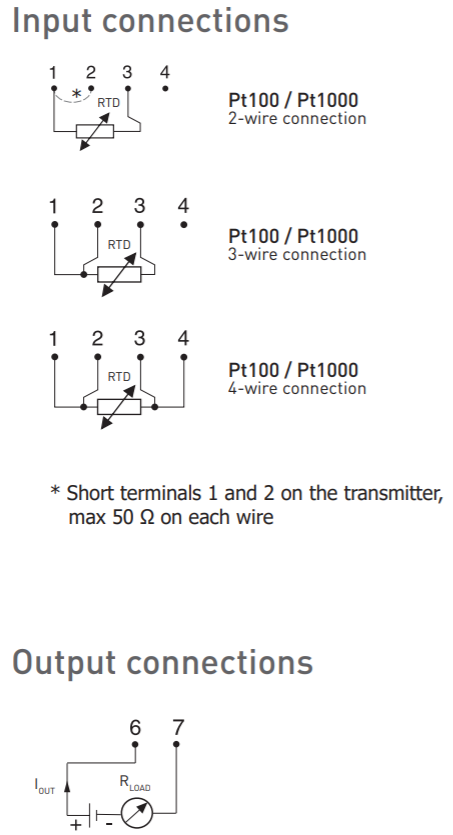

- Input: Pt100, Pt1000
- Type of transmitter: Digital
- Output: 4-20 mA
- Measuring range: –200…+850 °C / -328…+1562 °F
- Sensor error: NAMUR NE43
- Adjustments – Zero point: Any value within range limits
- Adjustments – Minimum span: 20 °C / 36 °F
- Ambient temperature: –40…+85 °C / -40…+185 °F
- Humidity: 0…98% RH (non-condensing)
- Vibration: IEC 60068-2-6,10 g
- EMC: EN 61326-1 and EN 61326-2-3
- Isolation: Unisolated
- Power supply: 6…32 VDC
- Long-term stability: Max. drift ±0,05 % of span/year
- Typical accuracy: Max. ±0,15 K or ±0,15 % of span
- Adjustable filtering level: 0,4 to 26 s
- Configuration: App INOR Connect*
- Wireless communication: NFC®
