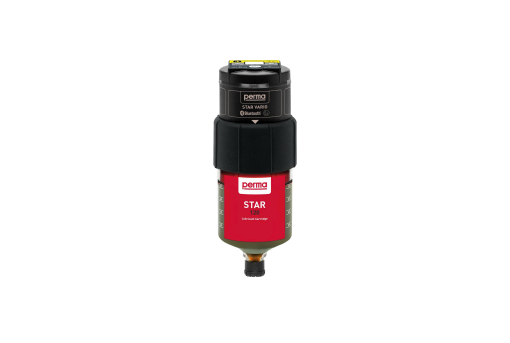

Perma STAR VARIO BLUETOOTH EX

  • Drive: Electromechanical
  • Power supply: Battery pack STAR VARIO EX 4.5 V
  • Housing: Transparent plastic
  • Operating temperature: -40 °C to +60 °C
  • Pressure build-up: 7,5 bar
  • Protection class: Min. IP 54
Categories: , Tags: , , , , , ,

Part number:

Supplier

 Description

 Art. No.


perma STAR VARIO BLUETOOTH EX
PERMA perma STAR VARIO BLUETOOTH EX Drive 118585
PERMA Battery pack STAR VARIO EX (Lithium) 118526
PERMA Support flange STAR G1/4 male x G1/4 female (brass / plastic) 109420
PERMA Protection cap STAR VARIO Standard Duty 60 / 120 (plastic) 109520
PERMA Protection cap STAR VARIO Standard Duty 250 (plastic) 109519
PERMA Protection cap STAR Heavy Duty 250 (plastic) 109999
PERMA Protection cap STAR VARIO Heavy Duty 500 (plastic) 113595
perma STAR LC 60 Grease
PERMA perma Multipurpose grease SF01 104044
PERMA perma Extreme pressure grease SF02 104048
PERMA perma High temp. grease SF03 104051
PERMA perma High performance grease SF04 104054
PERMA perma High temp. / Extreme pressure grease SF05 104057
PERMA perma Liquid grease SF06 104061
PERMA perma High speed grease SF08 104063
PERMA perma Multipurpose bio grease SF09 104065
PERMA perma Food grade grease H1 SF10 104069
perma STAR LC 60 Oil (Order oil retaining valve separately)
PERMA perma High performance oil SO14 104180
PERMA perma Multipurpose oil SO32 104188
PERMA perma Bio oil, low viscosity SO64 104198
PERMA perma Bio oil, high viscosity SO69 104202
PERMA perma Food grade oil H1 SO70 104204
perma STAR LC 120 Grease
PERMA perma Multipurpose grease SF01 100724
PERMA perma Extreme pressure grease SF02 100733
PERMA perma High temp. grease SF03 100739
PERMA perma High performance grease SF04 100744
PERMA perma High temp. / Extreme pressure grease SF05 100750
PERMA perma Liquid grease SF06 100755
PERMA perma High speed grease SF08 100762
PERMA perma Multipurpose bio grease SF09 100766
PERMA perma Food grade grease H1 SF10 100770
perma STAR LC 120 Oil (Order oil retaining valve separately)
PERMA perma High performance oil S-1O14 101096
PERMA perma Multipurpose oil SO32 101117
PERMA perma Bio oil, low viscosity SO64 101137
PERMA perma Bio oil, high viscosity SO69 101145
PERMA perma Food grade oil H1 SO70 101148
perma STAR LC 250 Grease
PERMA perma Multipurpose grease SF01 104473
PERMA perma Extreme pressure grease SF02 104480
PERMA perma High temp. grease SF03 104485
PERMA perma High performance grease SF04 104488
PERMA perma High temp. / Extreme pressure grease SF05 104492
PERMA perma Liquid grease SF06 104497
PERMA perma High speed grease SF08 104500
PERMA perma Multipurpose bio grease SF09 104502
PERMA perma Food grade grease H1 SF10 104506
perma STAR LC 250 Oil (Order oil retaining valve separately)
PERMA perma High performance oil SO14 104685
PERMA perma Multipurpose oil SO32 104696
PERMA perma Bio oil, low viscosity SO64 104711
PERMA perma Bio oil, high viscosity SO69 104716
PERMA perma Food grade oil H1 SO70 104719
perma STAR LC 500 Grease
PERMA perma Multipurpose grease SF01 112410
PERMA perma Extreme pressure grease SF02 112906
PERMA perma High temp. grease SF03 112907
PERMA perma High performance grease SF04 112908
PERMA perma High temp. / Extreme pressure grease SF05 112909
PERMA perma Liquid grease SF06 112041
PERMA perma High speed grease SF08 112910
PERMA perma Multipurpose bio grease SF09 112911
PERMA perma Food grade grease H1 SF10 112859

At a glance:

  • The lubrication system can be configured, controlled and maintained conveniently from a distance via perma CONNECT. perma STAR VARIO BLUETOOTH EX can be used in potentially explosive areas with gases (up to Zone 0 / Div 1) and dusts (up to Zone 20 / Div 1). Thanks to the intrinsically safe Battery pack STAR VARIO EX, both battery pack and STAR LC can be replaced directly on site.

Application:

  • perma STAR VARIO BLUETOOTH EX is used for single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains in potentially explosive areas. Thanks to precise lubricant metering, perma STAR VARIO BLUETOOTH EX is ideal for lubrication of electric motors with specified lubricant quantities.

Technical data:

  • Drive: Electromechanical
  • Power supply: Battery pack STAR VARIO EX 4.5 V
  • Housing: Transparent plastic
  • Discharge period: 1, 2, 3, …, 12 months | 1, 2, 3, …, 52 weeks
  • STAR LC 500: max. 6 months
  • Lubricant volume: 60 cm³, 120 cm³, 250 cm³, 500 cm³
  • Operating temperature: -40 °C to +60 °C
  • Pressure build-up: 7,5 bar
  • Protection class: Min. IP 54
  • Lubricants: Grease up to NLGI 2 / oil
  • Max. tube lengths: 5.00 m
  • CE: ✓️
  • Ex: ✓️
  • IEC Ex: ✓️
  • MET: ✓️
