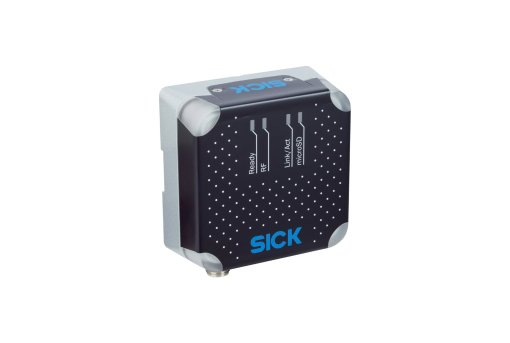

RFID RFU61x

Quick and low-cost installation thanks to direct connection option for trigger sensors
Simple connection with M12 cable for IO-Link variants
Configuration via SOPAS ET
Ethernet-based variants: Compatible with SICK AppSpace
Rugged design (IP67)

Part number:

Product	Part no.	Frequency band	Read range	Radio approval	Communication interface
RFU610-10713	1135693	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Taiwan	IO-Link
RFU610-10607	1104447	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Japan	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10600	1091102	UHF (860 MHz … 960 MHz)	≤ 0.5 m	European Union, South Africa, United Arab Emirates	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10700	1115779	UHF (860 MHz … 960 MHz)	≤ 0.5 m	European Union	IO-Link
RFU610-10610	1104446	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Korea	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10605	1101394	UHF (860 MHz … 960 MHz)	≤ 0.5 m	China, Thailand	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10705	1130197	UHF (860 MHz … 960 MHz)	≤ 0.5 m	China	IO-Link
RFU610-10618	1104448	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Vietnam	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10603	1104443	UHF (860 MHz … 960 MHz)	≤ 0.5 m	India	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10613	1104445	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Taiwan	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10609	1104449	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Singapore	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10614	1104441	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Malaysia	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10604	1104444	UHF (860 MHz … 960 MHz)	≤ 0.5 m	Brazilian	Ethernet, PROFINET, EtherNet/IP™, USB
RFU610-10601	1099890	UHF (860 MHz … 960 MHz)	≤ 0.5 m	USA, Canada, México	Ethernet, PROFINET, EtherNet/IP™, USB

At a glance:

Versatile application possibilities due to small size
Quick and low-cost installation thanks to direct connection option for trigger sensors
Very little programming work needed in the control thanks to process logics integrated in the device
Easy configuration through SOPAS ET saves time and costs for testing and commissioning
Simple connection with M12 cable for IO-Link variants
Depending on the device variant, SICK AppSpace offers a high level of flexibility when programming individualized software solutions
Rugged design for reliable operation, even in tough industrial environments

Extremely compact design
Scanning range up to 0.5 m
Connection option for trigger sensors
Flexible interface concept (e.g. PROFINET, EtherNet/IPTM, OPC-UA, IO-Link (via IO-Link master))
Integrated antenna and data processing
Configuration via SOPAS ET
Ethernet-based variants: Compatible with SICK AppSpace
Rugged design (IP67)
